Xtester-TUF-2000H Handheld Ultrasonic Flowmeter Portal Ultrasonic Flow Meter Salt Water Flow Meter
Product descriptions from the supplier
Product Description
| OEM portable wall mount ultrasonic flowmeter/flow sensor 100mm for water can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.such as Water (hot water, chilled water, city water, sea water, waste water, etc.);Sewage with small particle content;Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);Chemicals (alcohol, acids, etc.);Plant effluent;Beverage, liquid food;Ultra-pure liquids;Solvents and other liquid. |
ATTUF-2000H Digital water flow meter handheld medidor de flujo ultrasonico supplier
Technical Parameters | |
| Items | Specification |
| Linearity | 0.50% |
| Repeatability | 0.20% |
| Accuracy | Better than ±1% for velocity above 0.2m/s |
| Response Time | 0-999 second, user-configurable |
| Flow Range | ±32m/s |
| Measuring Pipe Size | 25mm-6000mm |
| Units | English (U.S.) or metric |
| Totalizer | 7-digit totalizer for net, positive and negative flow respectively |
| Liquid Types | Any single uniform liquid which can transmit ultrasonic |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4×16 character |
| CommunicationInterface | RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flowmeter and other UFM on enquiry. |

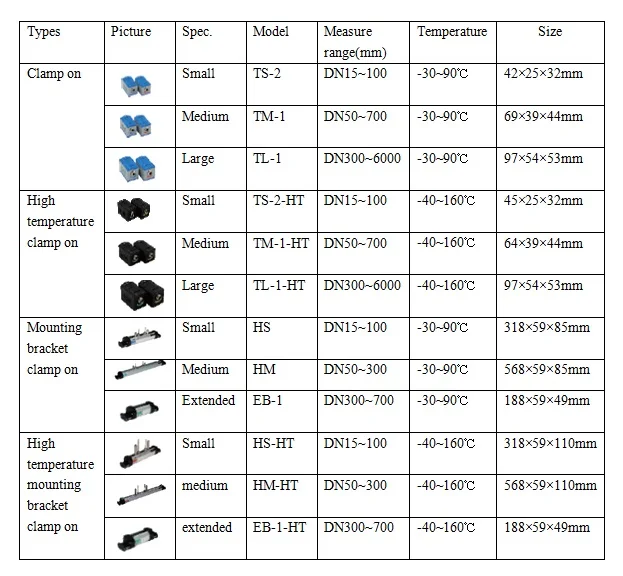

| Transducers | Model M1 for standard, other 4 models for optional |
| Transducer Cable | Standard 5m x2 or can be extended to 10m x2 |
| Power Supply | 3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7 digit, calibrating by key |
| Housing Material | Flaming retarding ABS |
| Size | 200×93×33mm |
| Handset Weight | 400g with batteries |
ATTUF-2000H Digital water flow meter handheld medidor de flujo ultrasonico supplier
Lable:
Salt Water Flow Meter
