Xtester-AUTO-Compact Tuning Fork Level Sensor/Level Switch Oil Tank Level Sensor Vibration Fork Type DPDT SPST PNP
Product descriptions from the supplier
STANDARD SPECIFICATION
medium temperature range | -20 ° C to 220 ° C |
ambient temperature | -20 ° C to 80 ° C |
ambient humidity | ≤ 95% RH |
measured medium | liquid, powder or granular solid |
measured medium density | solid ≥ 0.1g/cm3, liquid ≥ 0.7g/cm3 |
measured solid particle size | ≤ 10mm |
maximum liquid viscosity | <1000mm2 / s |
measured medium repose angle | ≥ 200 |
pressure range | ≤ 1MPa |
shell material | die-casting aluminum alloy |
fork material | 1Cr18Ni9Ti |
shell protection | IP65 |
connection | 1 "NPT thread / flange (two ways) |
electrical parameters | 1: supply voltage: 24 V DC; 220V AC 50Hz 2: output signal: relay output double-pole double- throw (DPDT) contact capacity: 8A 220V AC 4A 24V DC 3: power consumption: ≤ 2W |
tuning fork vibration frequency | 300 ± 500HZ |
STANDARD TYPE

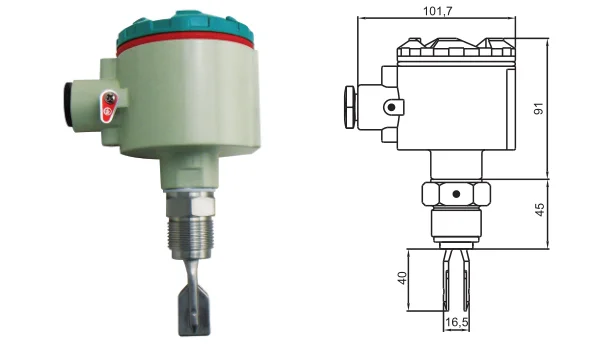

COMPACT TYPE
Tuning fork level switch structure

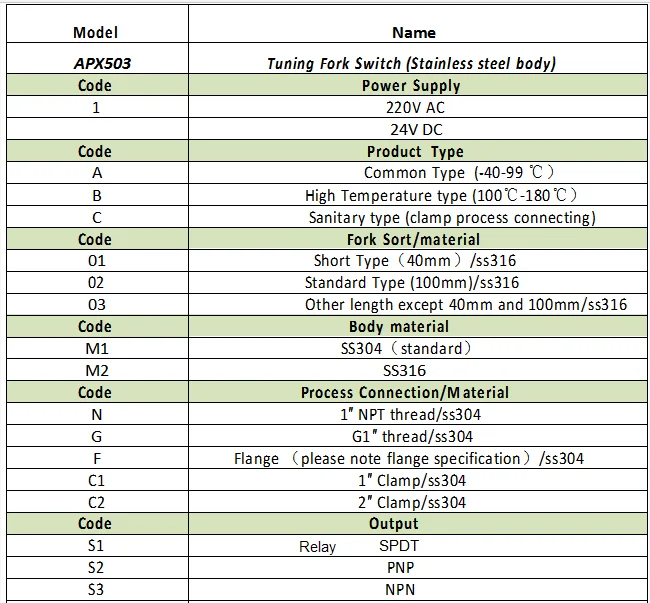

Order sheet China product Turning Fork Level Switch With Low Price
