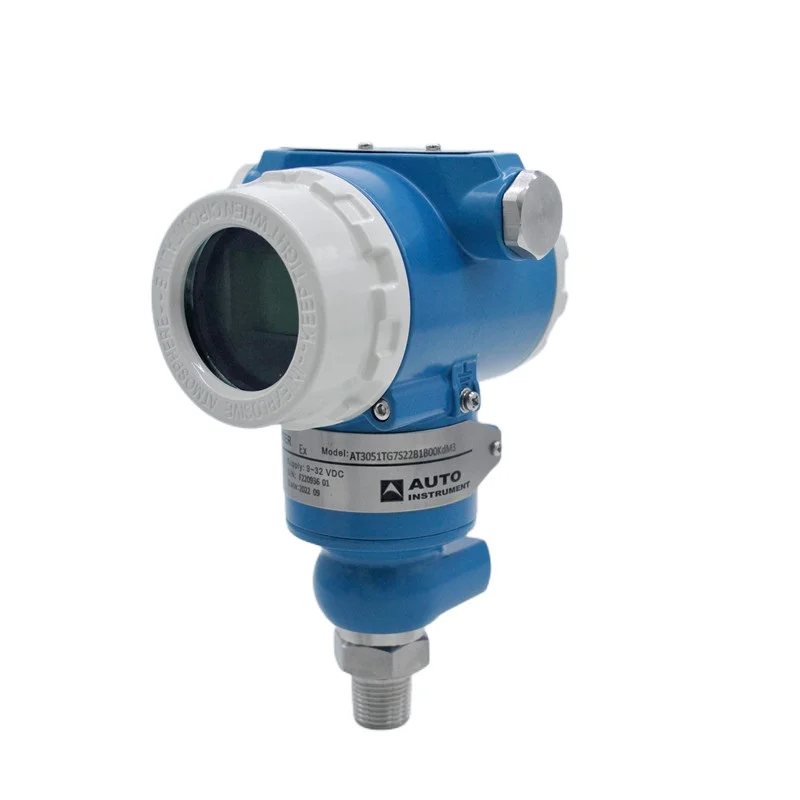

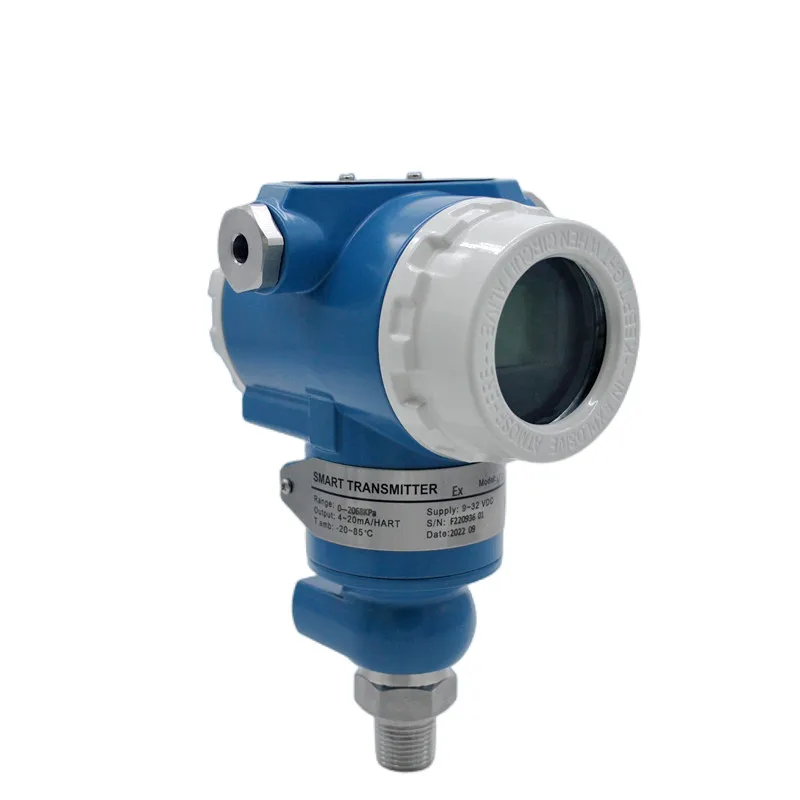

Xtester-AT3051-Gauge Pressure Transmitter for air Liquid Industrial Pressure Transmitter 4-20ma Output Digital Pressure Transmitter
Product descriptions from the supplier
Yantai Auto Instrument Making Co., Ltd
| Yantai Auto Instrument Making Co., Ltd has advanced production equipment and high-precision import calibration equipment , it is a high-tech enterprise integrating product design , research and development , production and sales .Widely used in environment protection,power,petrochemical,metallurgy , electric power,pharmaceutical ,food and other industries .Products are exported to more than 60 countries and regions such as the United states , Germany , Russia , India , Vietnam , South Korea and Pakistan etc.Undertake Rosemount , Yokogawa, Honeywell and other imported brands pressure , differential pressure , liquid level transmitter maintenance business . |
Product Specification
| The high performance Gauge / Absolute pressure transmitter AT3051 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. it outputs a 4~20mA DC signal corresponding to the measured pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm. |
Order Sheet
Features
| 1. Process Fluid: Liquid, Gas, Vapor |
| 2. Application: Differential Pressure, Gauge Pressure,Absolute Pressure |
| 3. Working Temperature: -25 to +95℃ |
| 4. Current Output: 4 - 20 mA 2 wires Hart Protocol |
| 5. Power Supply: 24VDC |
| 6. Ambient Temperature: -25 to +240℃ |
| 7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT |
| 8. Electrical Connections: 1/2”NPT or M20*1.5 |
| 9. Enclosure:IP65 |
| 10.Intrinsically Safe: Exia II C T6 |
| 11.Explosion proof: Exd II B T5 |
Production Line
Lable:
Digital Pressure Transmitter
