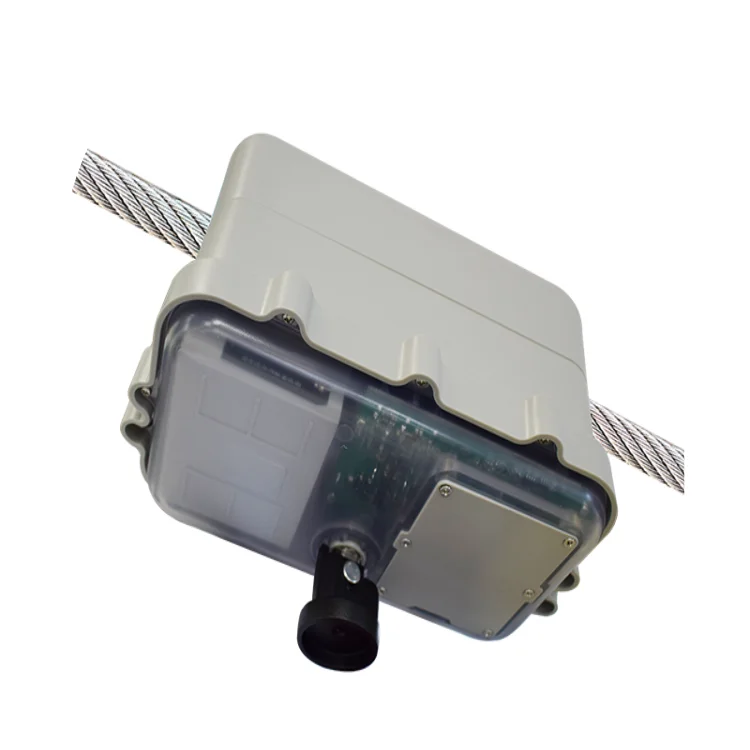

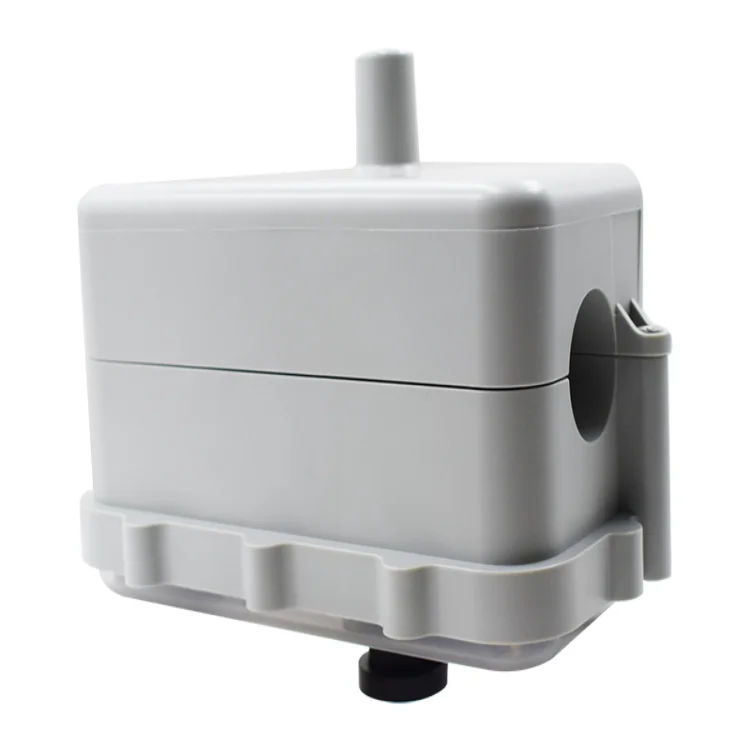

Xtester- JYL-FF-HX IP67433MHz Remote(GPRS3G4G) Up to 70meter online power supply Overhead Fault Indicator Data Concentrator unit,Remote monitoring for overhead line
Overview
| In order to solve the power supply problem of the indicator data control unit (DCU), Four-Faith Smart Power uses special sensor technology and AI algorithm to realize the online power supply of the control unit. Compared with the traditional indicator, a separate control box and solar panel are not required , not only reduces the size and weight of the device, but also supports online hot rod installation, which greatly reduces the difficulty of installation for users. |
Control unit Features:
| 1. Hot stick installation, simple and quick 2. Online induction to take power, keep never disconnected 3. AI algorithm to realize rapid detection of faults and status 4. Possess the ability of system self-test and self-recovery and the function of data transmission in extreme cases. |
Technical Parameter
Parameter | Value |
Power supply | |
Main power | Online induction power |
Backup power | Lithium battery: Lithium iron phosphate battery 1AH/3.2V |
Start current | 3A |
Communication | |
Remote | GPRS/3G/4G |
Local communication | 433MHz |
Local communication distance | Up to 70m |
Communication protocol | IEC101/IEC104 |
Sim card | 1 SIM card |
Number of connected FPIs | Standard 3, up to 9 FCI |
Physical characteristics | |
Dimensions | 245X140X170mm |
Weight | ≤3Kg |
Protection class | IP67 |
Operating temperature | -40℃~70℃ |
Configuration interface | TTL |
Visual fault indication | Remote state |
Install | Conductor mount |
Life time | >8 years |
