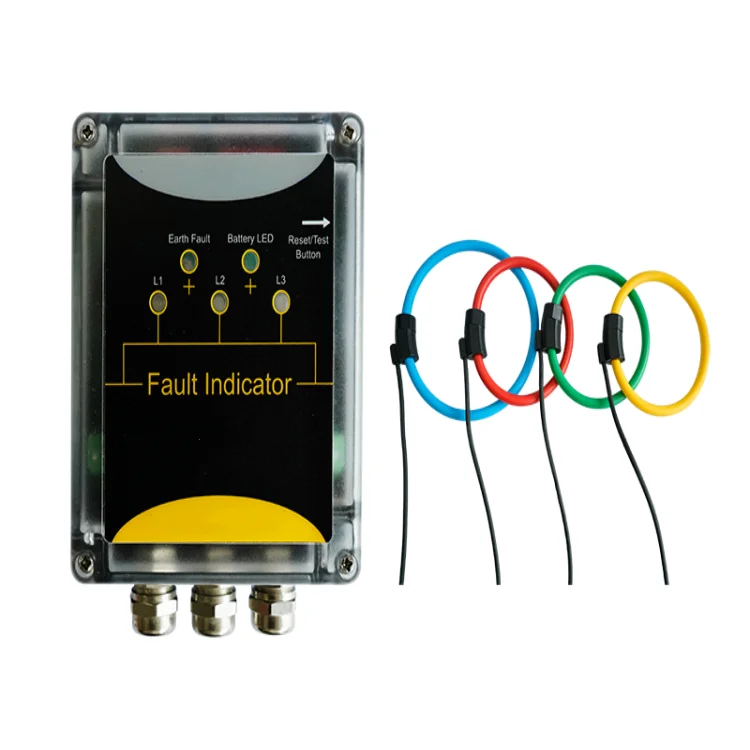

Xtester- DYO-FF-FIS Remote easy install Underground Cable Fault indicator
Overview
| Underground cable Fault indicator DYO-FF-FIS is a Four-Faith underground cable fault indicator family used in environments with higher precision requirements. The sensor based on the Rogowski coil has better sensitivity and supports the detection of short-circuit ground faults. Underground cable fault indicator has self-test and self-recovery functions. Underground cable fault indicator is suitable for 5-38KV power distribution ring network lines. Installed in substation cable outlets, RMU reduces fault location time and provides safety for public utility workers. |
Technical parameters
Parameter | value |
Voltage class of cable power distribution lines | 5-38KV |
Short-circuit Trip Current (Phase to Phase) | 200A/600A/800A/1000A,default 200A (±5%) adjustable by DIP switch |
Short-circuit Response Delay Time | 40ms/80 ms /100 ms /200ms,default 40ms,adjustable by DIP switch |
Earth-fault Trip Current (Phase to Ground) | 40A/80A/120A/160A,default 40A (±5%) adjustable by DIP switch |
Earth-fault Response Delay Time | 40ms/80 ms /100ms /200ms, default 40ms,adjustable by DIP switch |
Fault Indication | Earth-fault: 1 Red LED |
Short-circuit: 3 Red LED | |
Low Battery alarm: 1 Yellow LED | |
Reset of the Indicator | 1. Manual by push button |
2. Timing Reset | |
3. DI reset from SCADA | |
4. Load current recovering reset (at least 10A) | |
5. 220~240VAC recovering reset | |
6. Communications by MODBUS | |
Power Supply | Lithium battery type AA 3.6V / 2.7Ah |
5~36VDC external power supply | |
Communication | RS485: Data bits 8/Stop bits 1/Parity none/Baud Rate:9600 |
Protocol: MODBUS RTU | |
Installation | Display unit: wall-mounted installation |
Dimensions | Indication unit (W x H x D) |
100mm x 120mm x 45mm (exclusive cable gland) | |
Protection Class | Display unit: IP54 |
Sensors: IP68 | |
Internal Type Test | According to IEEE495-2007 |
Operation Temperature Range | -40℃~+70℃ |

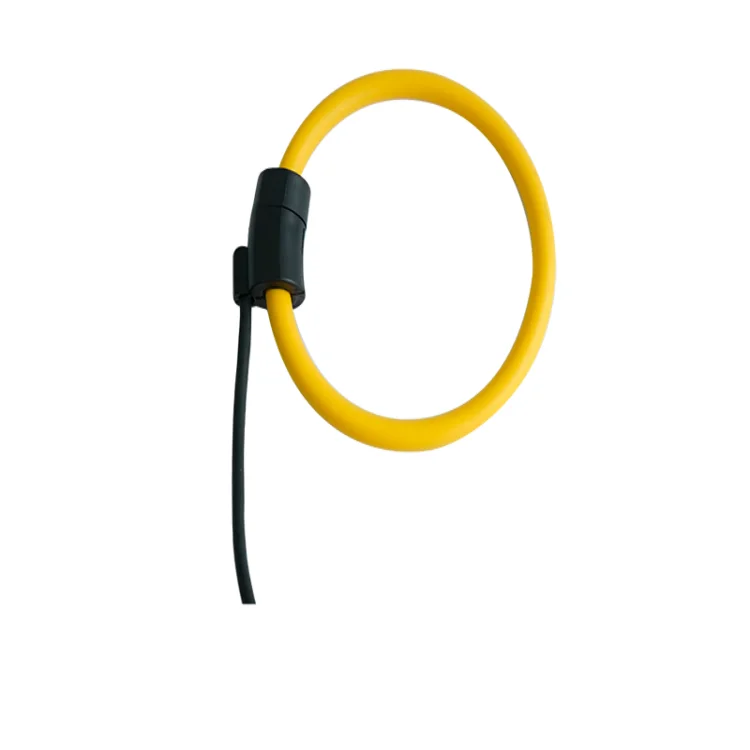

Short-circuit Sensor | 3 short-circuit sensor cable length 2*m(Rogowski Coil Sensors) |
Diameter: 80mm | |
Earth-fault Sensor | 1 earth-fault sensor cable length 2*m(Rogowski Coil) SensorDiameter: 110mm |
Configuration | Setting via DIP switch |
