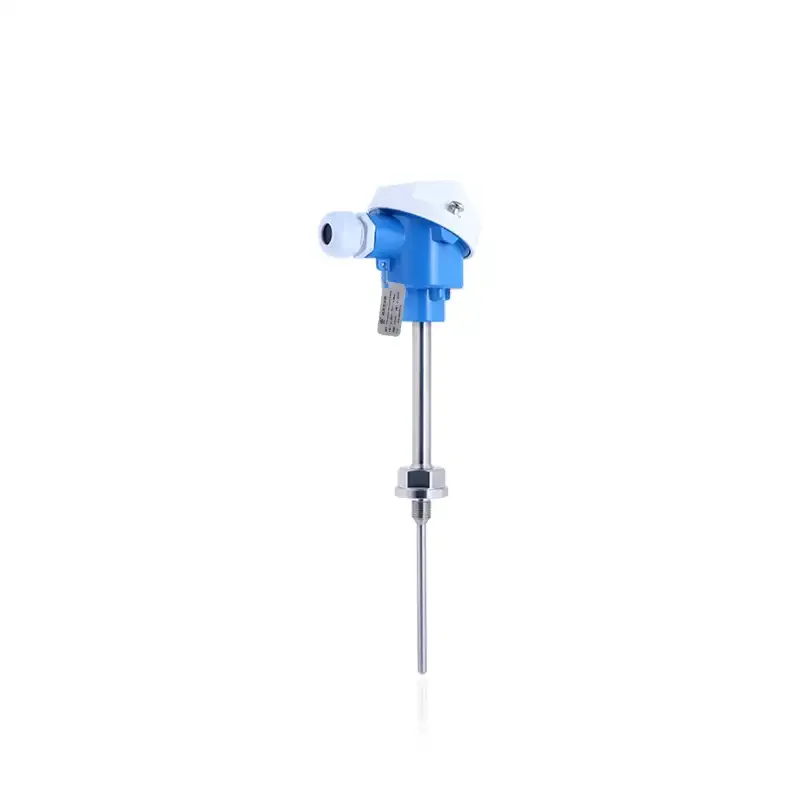

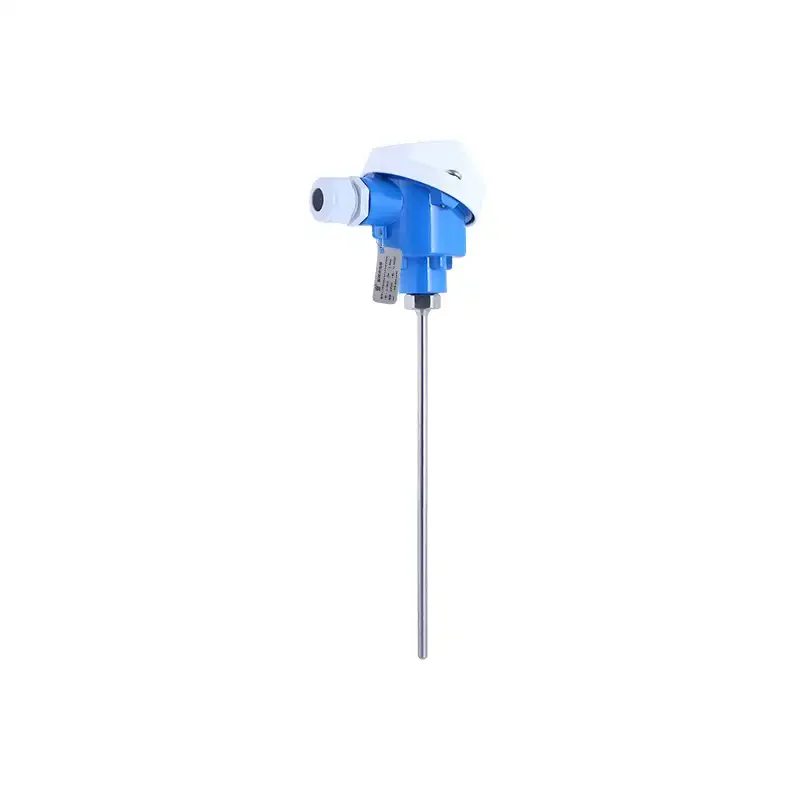

Xtester- CWDZ33A Plug-In Temperature Transmitter
CWDZ33A plug-in temperature transmitter is carefully designed, excellent quality, very suitable for general industry, a variety of interfaces, a variety of probes to achieve a variety of combination effects, suitable for different working conditions, and cost-effective.
Technical parameters Range: -50~300°C (see range parameter selection table for details) Output: 4~20mA, RS485, PT100 Power supply: 12~36VDC Accuracy: 0.25%FS, 0.5%FS
[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]
Typical applications General industry
Measuring medium Liquid or gas (compatible with contact material)
|
Technical parameters
Basic parameters | |
Measuring medium | Liquid or gas, etc. (compatible with contact material) |
Measuring range | -50~300℃ (See range parameter selection table for details) |
output signal | 4~20mA,RS485,PT100 |
powered by | 12~36VDC |
Accuracy | 0.25%FS, 0.5%FS |
Resolution | Analog output 0.02%FS, digital output 0.1℃ |
Measuring element | 1*Pt100(1/3B grade) |
Response time | Protection tube φ6mm≈18s, protection tube φ10mm≈36s (in accordance with IEC60751, 0.4m/s water flow, 10°C step) |
Stable performance | ±0.1%FS/year |
Between | 400ms |
Power Range | |
Current Type | ≤0.02Us(W) |
Digital | ≤0.015Us(W) |
Load characteristics | Current type: load ≤{(Us-9)/0.02(Us=supply voltage)}Ω |
Protection level | IP65 Note: The above protection level refers to the level achieved after the electrical connection is complete. |
Ambient temperature | -40~85℃ |
environment humidity | 0%~95%RH (no condensation and no condensation) |
Electrical protection | |
Short circuit protection | permanent |
Reverse polarity protection | No damage, but not working |
Insulation resistance | ≥100MΩ,500VDC |
Dielectric strength | 500VAC |
Output Limitation | |
Output minimum | 2.5mA, 0 |
Output Max | 26mA, 3500/7000 |
Overall material | |
Protective tube | 304 stainless steel (contacting the measured medium) |
Process connection | 304 stainless steel (contacting the measured medium) |
shell | Die-cast aluminum |
Cable locking head | Nylon (locking wire diameter 5~9mm) |
Mechanical stability | |
Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms in accordance with IEC60068-2-27 standard |
