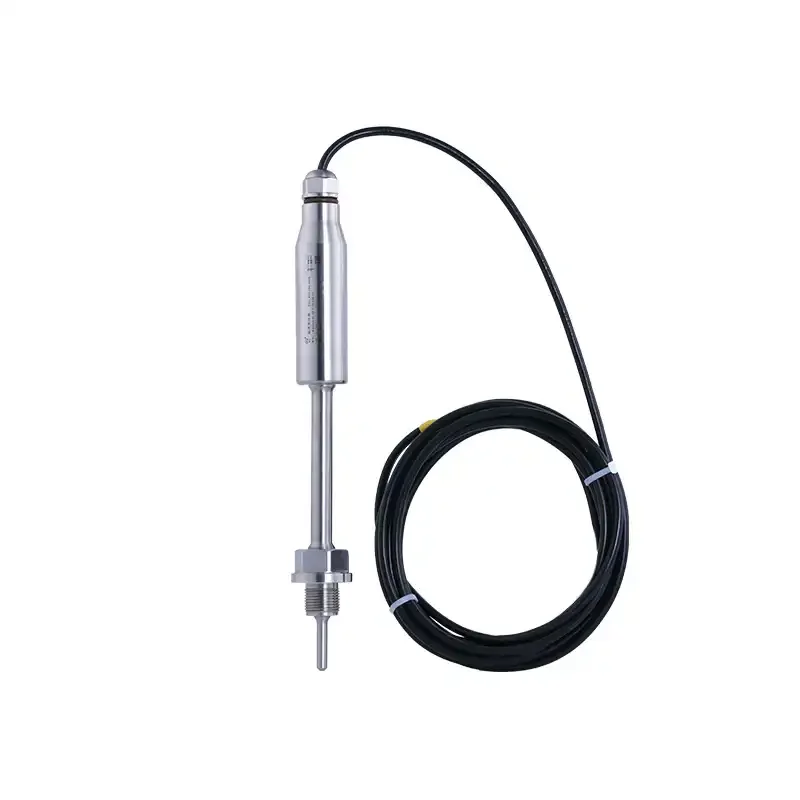

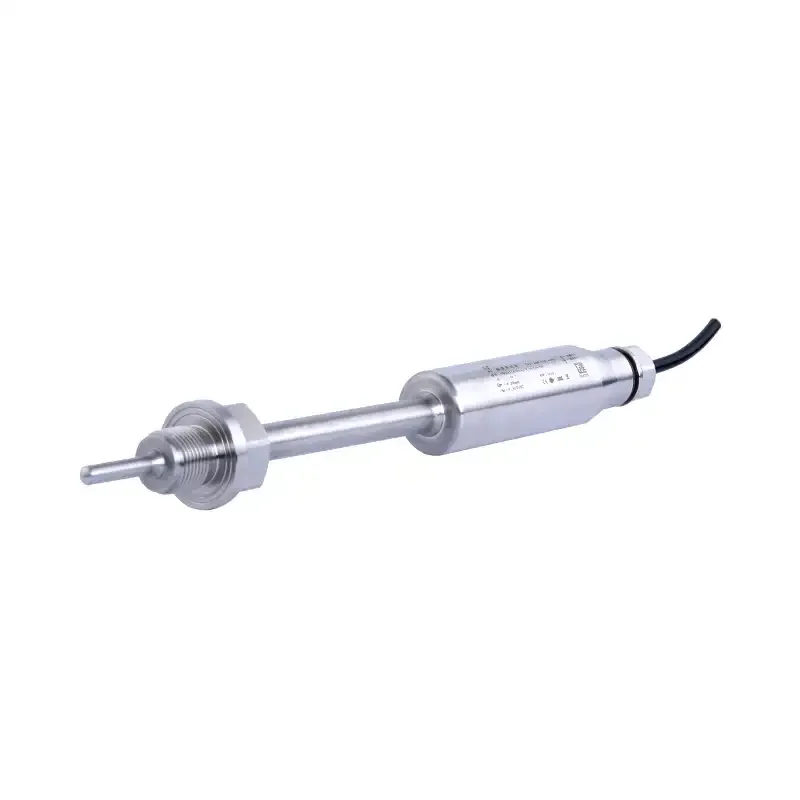

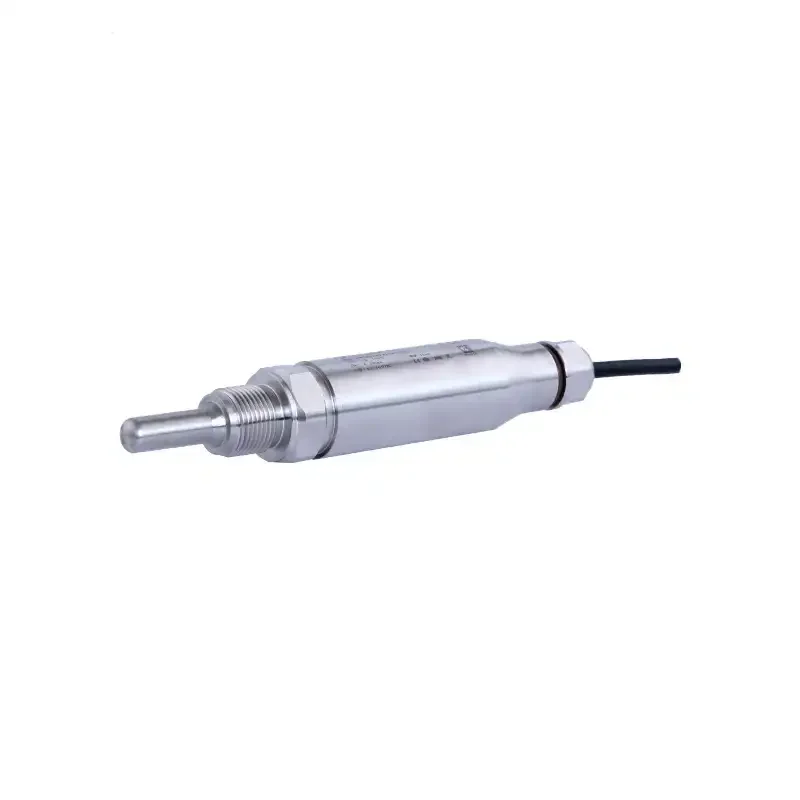

Xtester- CWDZ31A Waterproof Temperature Transmitter IP68 degree of protection
CWDZ31A waterproof temperature transmitter is well designed and of excellent quality, making it ideal for general industry. The IP68 degree of protection is ideal for harsh field environments, such as wet and immersion measurements, and is cost-effective.
Technical parameters Range: -50~300°C (see range parameter selection table for details) Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, PT100 Power supply: 12~36VDC, 15~36VDC accuracy: 0.25%FS, 0.5%FS
[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]
Typical applications Widely used in various industrial fields
Measuring medium Liquid or gas (compatible with contact material) |
Technical parameters
Basic parameters | |
Measuring medium | Liquid or gas, etc. (compatible with contact material) |
Measuring range | -50~300℃ (See range parameter selection table for details) |
output signal | 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, PT100 |
powered by | 12~36VDC, 15~36VDC, 15~24VDC (intrinsically safe only) |
Accuracy | 0.25%FS, 0.5%FS |
Resolution | Analog output 0.02%FS, digital output 0.1℃ |
Measuring element | 1*Pt100(1/3B grade) |
Response time | Protection tube φ6mm≈18s, protection tube φ10mm≈36s (in accordance with IEC60751, 0.4m/s water flow, 10°C step) |
Stable performance | ±0.1%FS/year |
Between | 400ms |
Explosion-proof type | Intrinsically safe type Ex ia ⅡC T6 Ga (4~20mA output only) |
Protection level | IP68 |
Power Range | |
Voltage Type | ≤0.008Us(W), ≤0.001Us(W) |
Current Type | ≤0.02Us(W) |
Digital | ≤0.015Us(W) |
Load characteristics | Current type: load ≤{(Us-9)/0.02(Us=supply voltage)}Ω |
Protection level | IP68 |
Ambient temperature | -40~85℃ |
environment humidity | 0%~95%RH (no condensation and no condensation) |
Electrical protection | |
Short circuit protection | permanent |
Reverse polarity protection | No damage, but not working |
Insulation resistance | ≥100MΩ,500VDC |
Dielectric strength | 500VAC |
Output Limitation | |
Output minimum | 2.5mA, 0, 0.001VDC |
Output Max | 26mA, 3500/7000, 10.2VDC, 5.2VDC |
Overall material | |
Protective tube | 304 stainless steel (contacting the measured medium) |
Process connection | 304 stainless steel (contacting the measured medium) |
shell | 304 stainless steel |
Cables | φ5mm polyurethane shielded cable (UV-resistant) |
Mechanical stability | |
Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms in accordance with IEC60068-2-27 standard |
