WP8027ADAM 16 channels Digital output module RS485 MODBUS

Main Features :
Serial No. : Zoe675

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

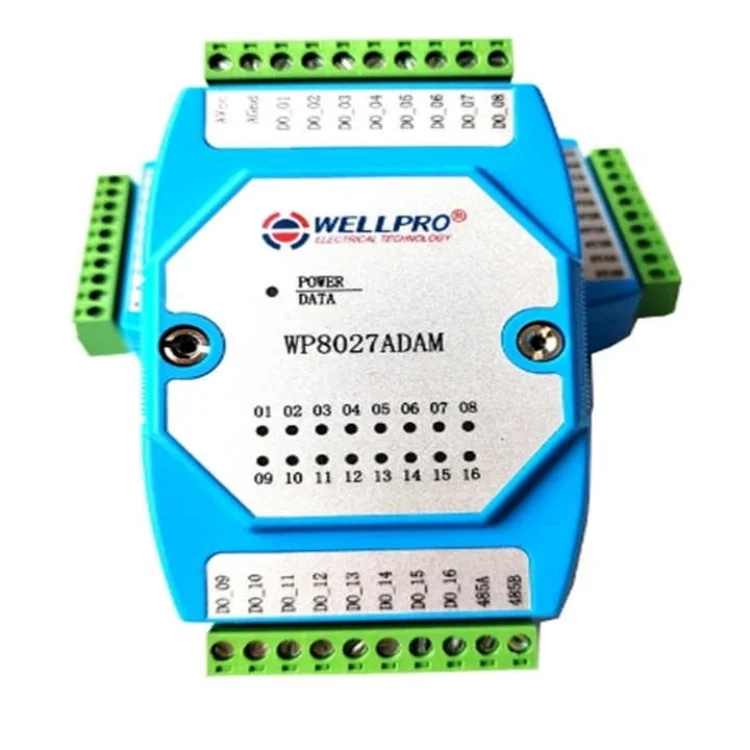

Xtester- WP8027ADAM 16 channels Digital output module RS485 MODBUS RTU Communications Optocoupler isolated

Product Description

Sixteen optically isolated digital output channels (NPN collector output).

Complies with the RS485 MODBUS RTU standard communication protocol.

Can be networked with configuration software, programmable logic controllers, or industrial touch panels.

Equipped with LEDs indicating the status of communication, digital input, and digital output.

Features a communication circuit designed for lightning protection and anti - interference.

Suitable for signal acquisition and control in industrial sites.

Specifications

Digital output channels: 16ch (NPN collector output, 500mA).

Operating temperature range: -20 to 70 °C.

External power supply: DC 9V - 30V/2W.

Isolation protection: DC 1500V.

Installation method: Standard DIN rail or screws.

Dimensions: 125 × 73 × 35 mm.
