Xtester-UNIVERSAL ENCODER Mini-Wheel Encoder Compatible with OLYMPUS NDT
FEATURES
|
The Mini-Wheel Encoder is used for the positioning and dimensioning of defects in the scan axis. It can synchronize data acquisition with probe movement. The Mini-Wheel Encoder is waterproof and compatible with the HST-X04 scanner, as well as Olympus NDT standard PA wedges that can be connected with the included bracket kit. This miniature encoder is built with an aluminium casing, a stainless steel wheel, and has a resolution of 12 counts per millimeters (304.8 counts per inch). |

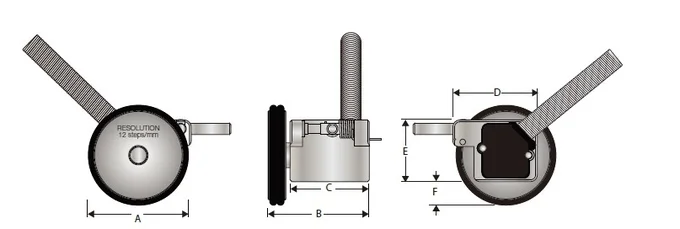

A = 27 mm (1.06 in.) | D = 24 mm (0.94 in.) |
B = 28.7mm (1.12 in.) | E = 17.5 mm (0.69 in.) |
C = 22.5 mm (0.89 in.) | F = 6 mm (0.23 in.) |
Part number, Cable length (m), Connector

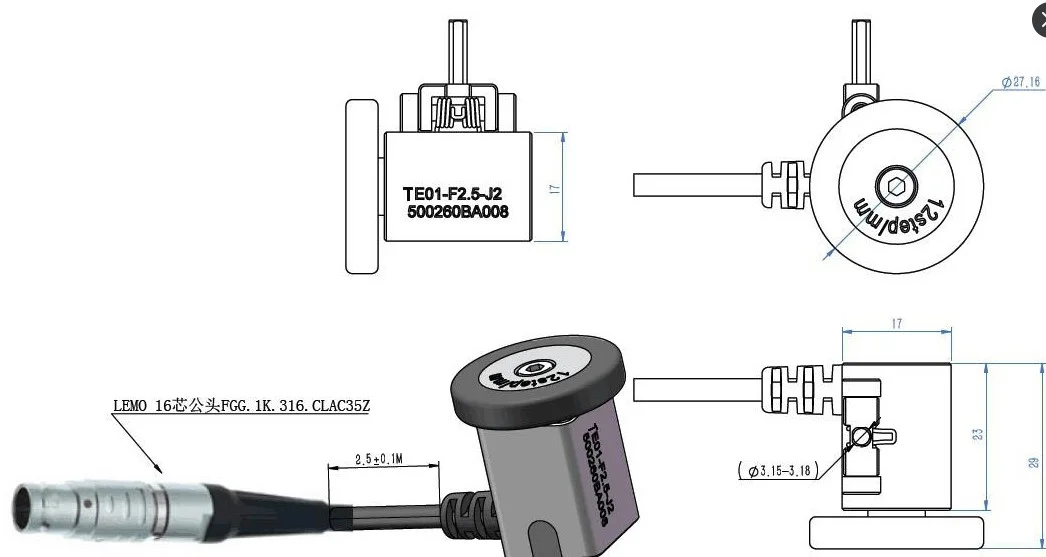

TE01-F2.5-J2 | 2.5 |
TE01-F5-J2 | 5.0 |
TE01-F7.5-J2 | 7.5 |
Standard Inclusions
• 1 encoder with standard wheel • 1 bracket kit • 1 Allen key screwdriver for bracket attachment • 1 carrying case |
