Xtester-IIW-type 2 Ultrasonic Calibration Block 1018 SteelUltrasonic Flaw Detection
Features

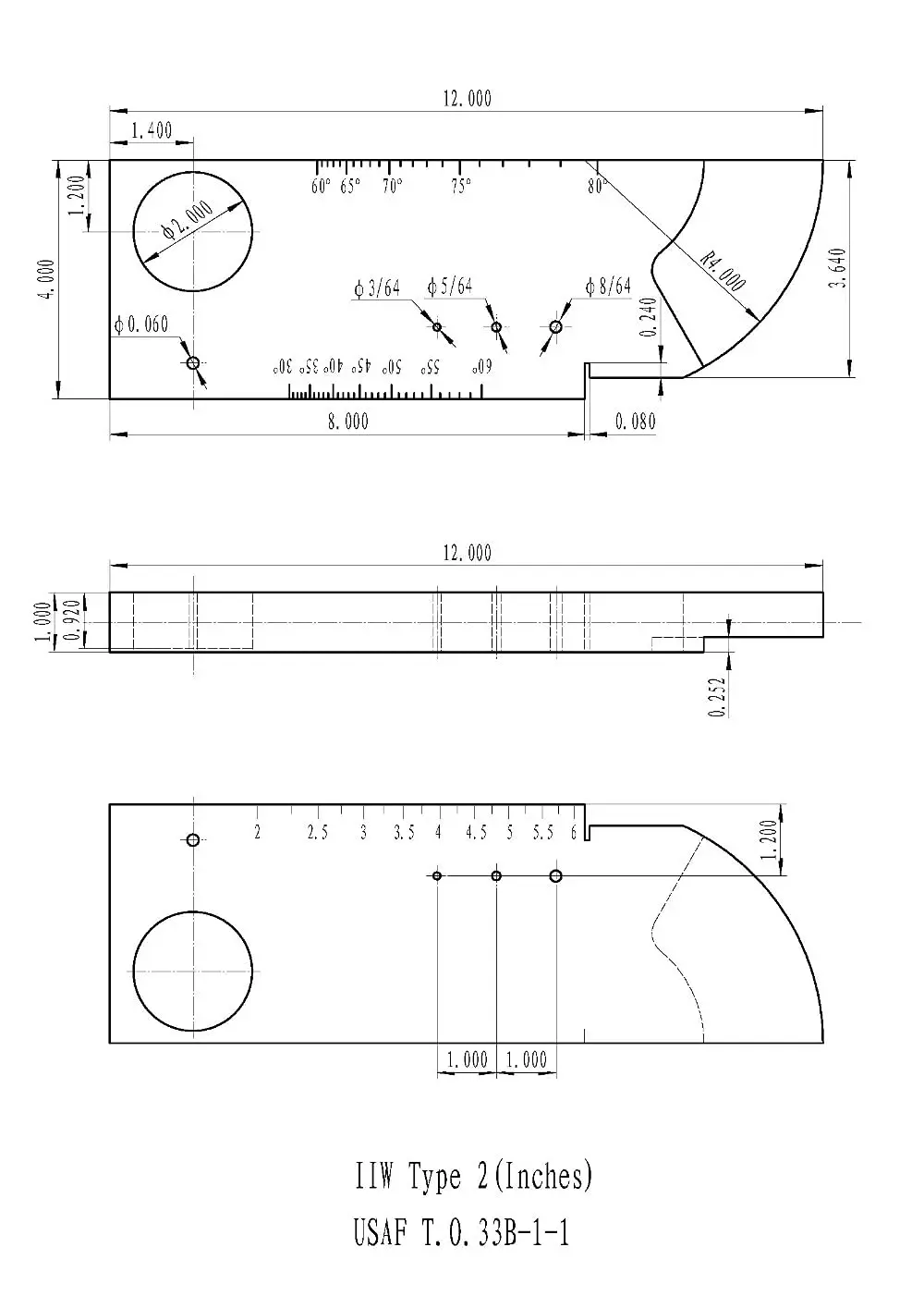

A modified version of the original IIW-Type 1 design in a inch version, design based on International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1 Includes a 2.0" radius x .250" deep cut-out superposed on the 4.0" radius for distance calibration. Also includes numbers 3, 5 and 8 through holes (3/64", 5/64" AND 8/64" diameter) for sensitivity testing or surface wave inspection, and distance calibration marks to the 2.0" hole. |
Dimensions: 12.0" x 4.0" x 1.0" Material: 1018 Steel Weight:6 KG |
| Package including | |
| Calibration block | 1 |
| certificate | 1 |
| carrying case | 1 |
