MEWOI-HT2000 Series 3-15M, 2-9 Sections,10-500KV Triangular shaped telescopic hot sticks,Triangle Hot Stick Telescopic for Cutout Fuse Surge Arrester Hv Telescopic Insulation Operating Rod

  • Main Features :
  • Serial No. : Xtester2200008

MEWOI-HT2000 Series 3-15M, 2-9 Sections,10-500KV Triangular shaped telescopic hot sticks,Triangle Hot Stick Telescopic for Cutout Fuse Surge Arrester Hv Telescopic Insulation Operating Rod,Brazilian American Type Triangle Telescopic Hot Stick Insulated Electric Hv Epoxy Reinforced Fiberglass Operating Rod,Brazilian American Type Triangle Telescopic Hot Stick Insulated Electric HV Epoxy Reinforced Fiberglass Operating Rod

Products Description

图片关键词

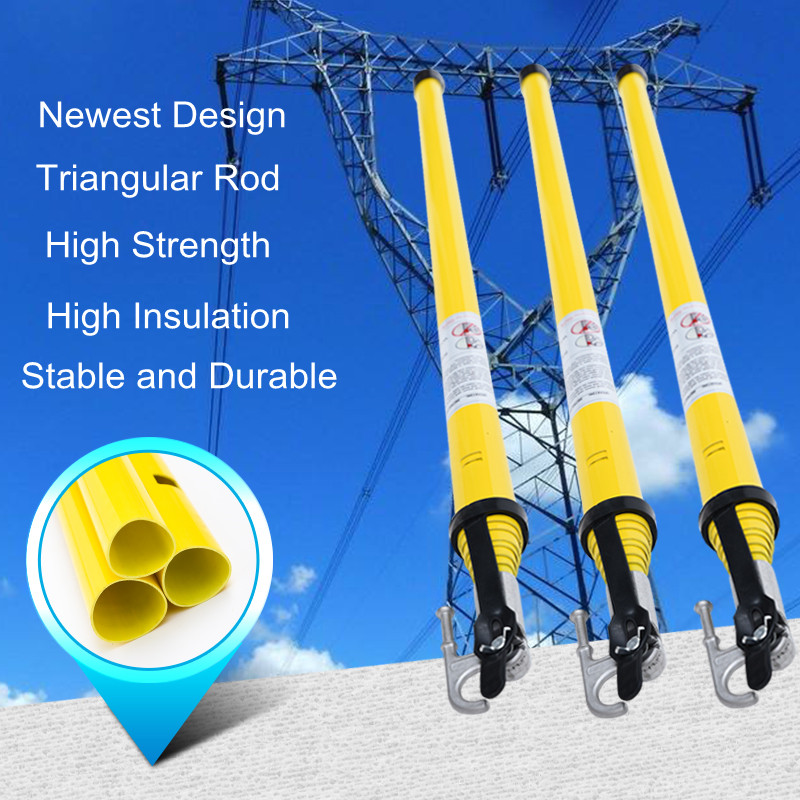

    The triangular shaped telescopic hot sticks are designed to be used in high voltage isolating switch
out operating, being one of the most used tools in hot line maintenance.
    The hot sticks are manufactured with epoxy reinforced fiberglass tubes. It comprises a number of sticks that slide into each other with integrated locking buttons. They have a lot of advantages.
    1. Easy to transport;
    2. High strength, more stable than round hot sticks;
    3. Triangular design , no rotation, gently pull out to achieve positioning, and easy to grasp;
    4. The square structure of large fixed button can strengthen the bearing capacity.
    5. Only the number of sections required for the job are extended, giving great flexibility.
    6. In line with GB13398-2008, the operating rod can withstand a voltage of 100KV/5minutes per      30cm, and 100% inspection before delivery to ensure quality.
Model
Extended Length
Closed Length
Sections
Net Weight
JTTS-3M/2-N
3M
1.70M
2
1.38KG
JTTS-3.8M/3-N
3.8M
1.49M
3
1.80KG
JTTS-5M/4-N
5M
1.56M
4
2.60KG
JTTS-6.4M/5-N
6.4M
1.62M
5
3.20KG
JTTS-7.8M/6-N
7.8M
1.67M
6
4.25KG
JTTS-9.2M/7-N
9.2M
1.72M
7
5.20KG
JTTS-10.6M/8-N
10.6M
1.77M
8
6.05KG
JTTS-12M/9-N
12M
1.80M
9
7.20KG
JTTS-12.5M/9-N
12.5M
1.85M
9
7.50KG
JTTS-15M/9-N
15M
2.18M
9
9.00KG
Products Details
图片关键词

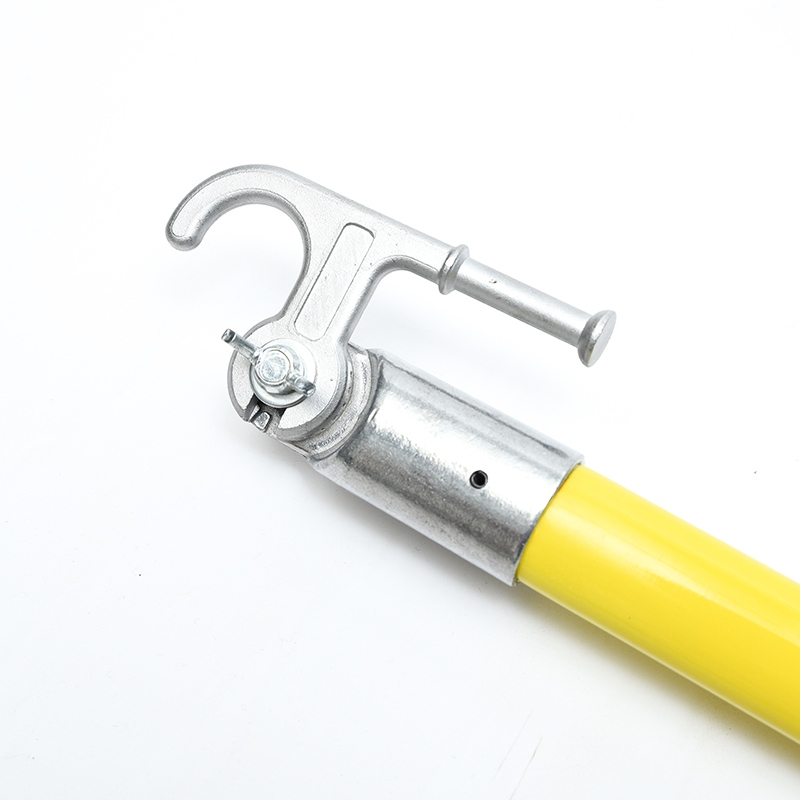

Disconnect Hook
图片关键词
Durable & Elastic Stopper
图片关键词

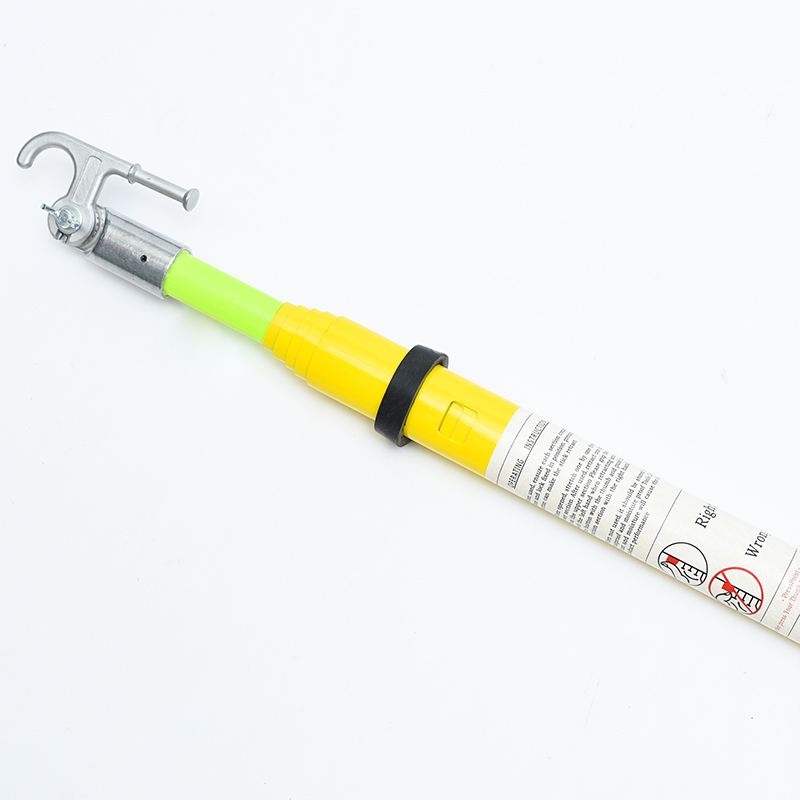

Fluorescent Green Tip Section
图片关键词

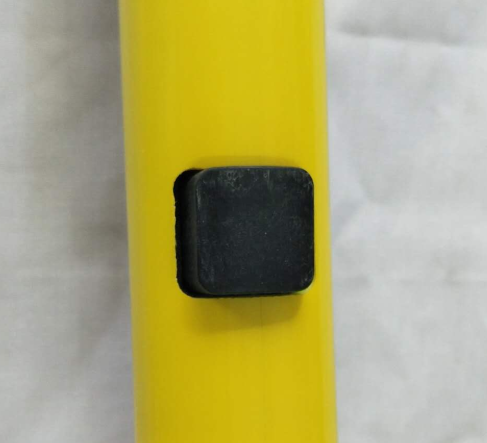

Integrated Locking Button
图片关键词

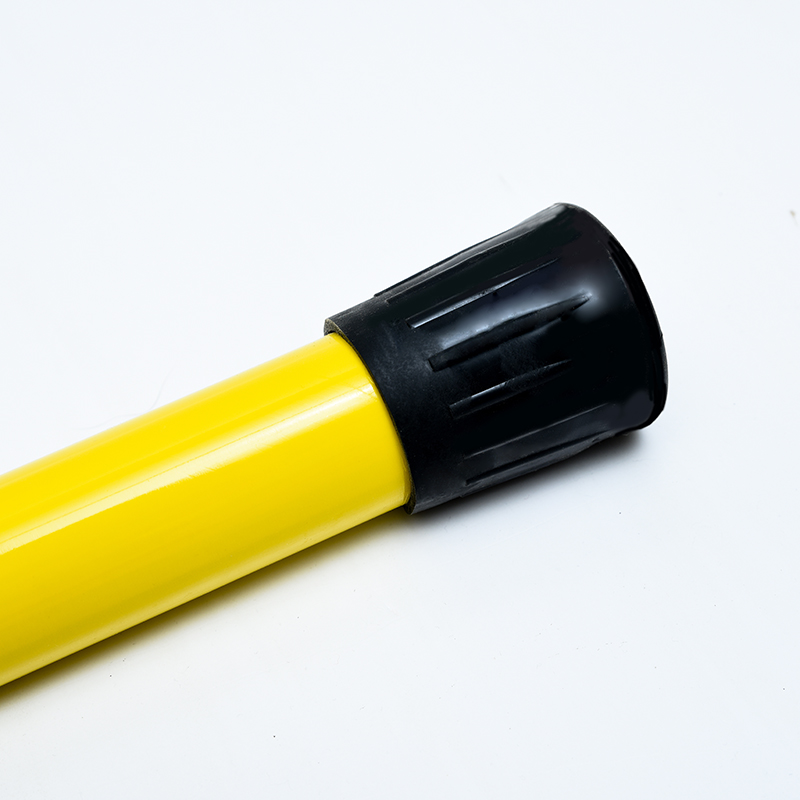

Durable Non-Slip Rubber Handle
图片关键词

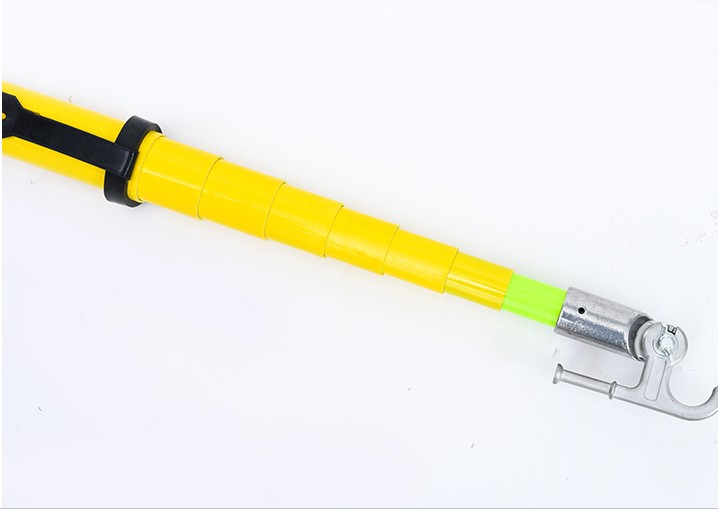

Multi Sections Adjustable Rod
图片关键词
Scale Printing is Optional
图片关键词

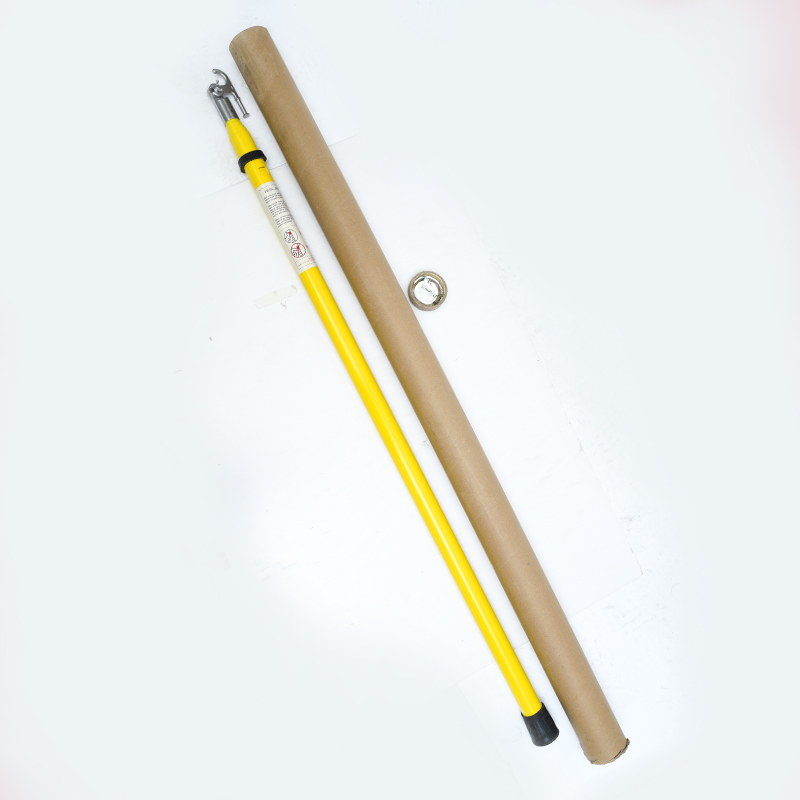

Package: Hot Stick into a Carry Bag
图片关键词
Package: Then into a Round Paper Tube

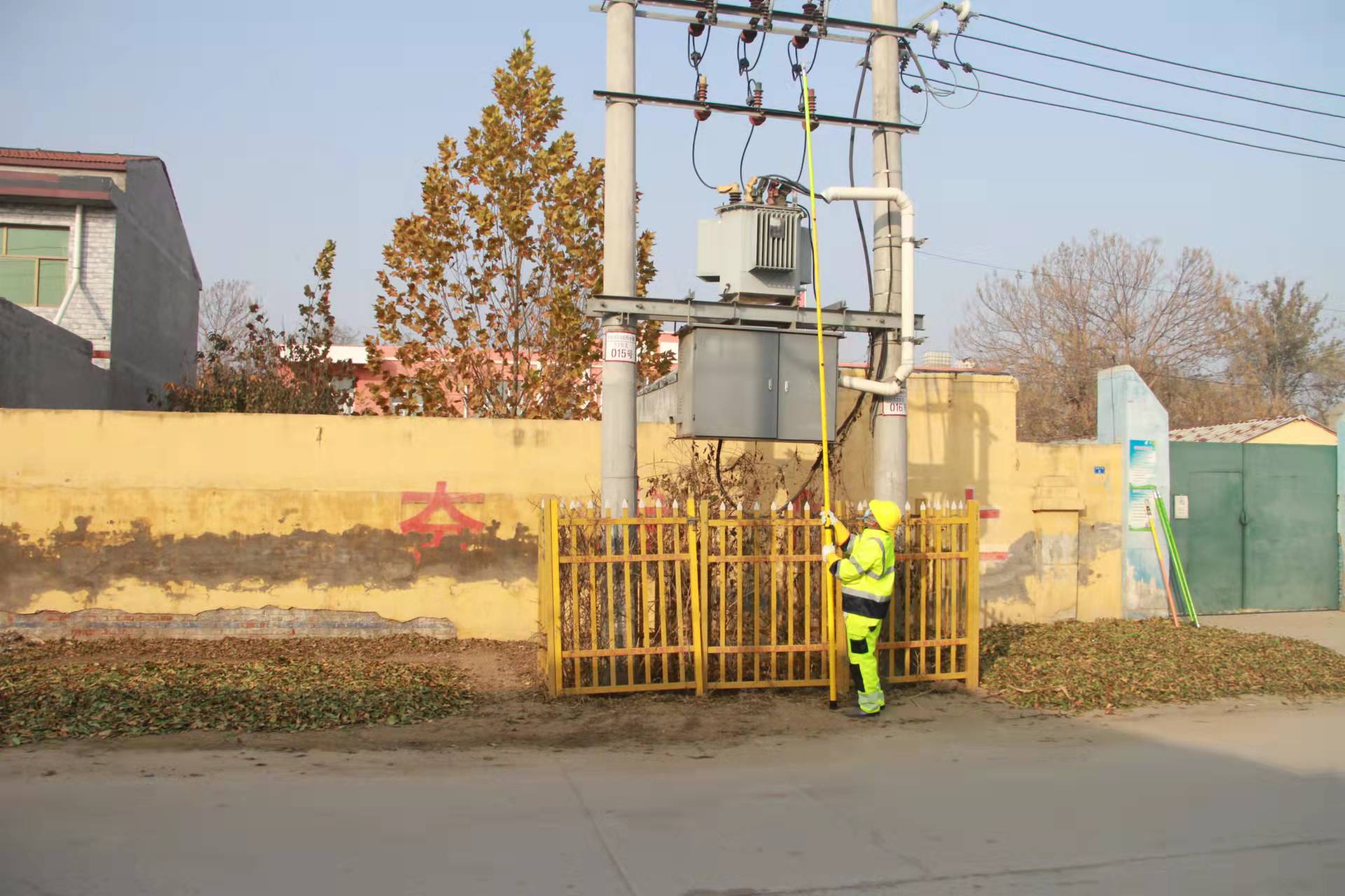

Application

图片关键词

图片关键词

图片关键词图片关键词
