Xtester-RS485 Mini Wifi Wind Speed/Direction Temperature Humidity Pressure Automatic Rain Gauge Sensor Outdoor Weather Station With Wind

Main Features :
Serial No. : Lisa0874

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-RS485 Mini Wifi Wind Speed/Direction Temperature Humidity Pressure Automatic Rain Gauge Sensor Outdoor Weather Station With Wind

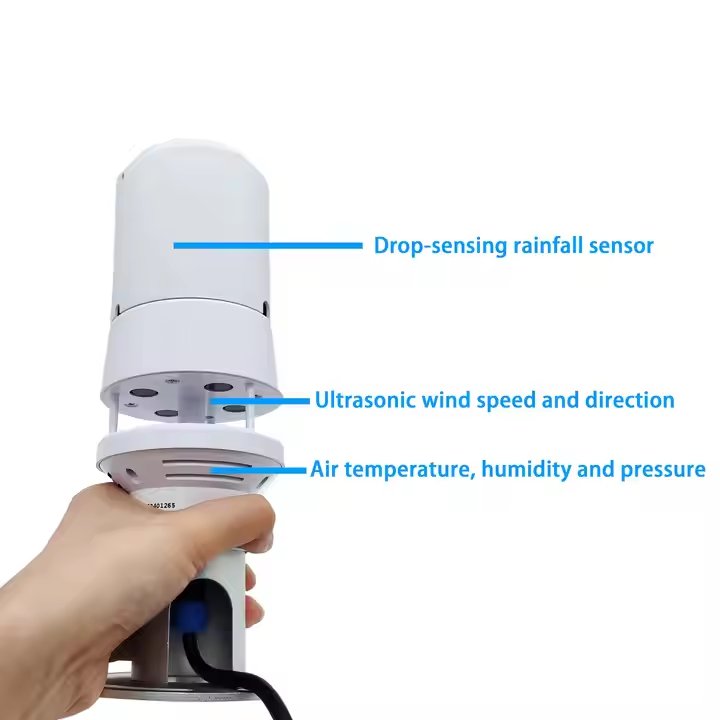

Production description

Parameters	Measure range	Resolution	Accurancy
Wind speed	0-45m/s	0.01m/s	Starting wind speed ≤ 0.8 m/s , ± (0.5+0.02V)m/s
Wind direction	0-360	1°	±3°
Air humidity	0~100%RH	0.1%RH	± 5%RH
Air temperature	-40 ～8 0 ℃	0.1 ℃	±0.3℃
Air pressure	300~1100hPa	0.1 hPa	±0.5 hPa ( 25 °C)
Drop-sensing rainfall	Measuring range: 0 ～ 4.00mm	0.03 mm	±4 % (Indoor static test, rain intensity is 2mm/min )
Illuminance	0～200000Lux	1 Lux	± 4%
Radiation	0-1500 W/m2	1W/m2	± 3%
Technical parameter
Operating Voltage	DC 9V -30V or 5V
Power consumption	200m W ( standard 5 elements with compass)
Output signal	RS485, MODBUS communication protocol
Working environment humidity	0 ~ 100%RH
Working temperature	-40 ℃ ~ + 70 ℃

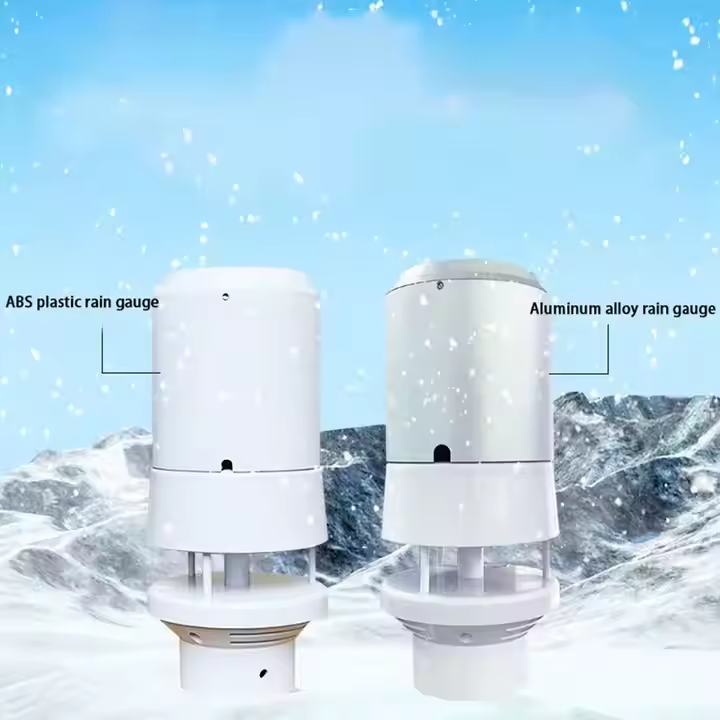

Material	ABS/Aluminum alloy rain gauge
Outlet mode	Aviation socket, sensor line 3 meters
Exterior color	milky
Protection level	IP65
Reference weight	200 g(5 parameters )

Lable: RS485 Rain Gauge Sensor
