PZEM-013 Digital DC Voltage Meter 10A 72v 100v Battery Monitor Impedance Capacity Volt & Wattmeter Energy Tester

  • Main Features :
  • Serial No. : Zoe280

Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Xtester- PZEM-013 Digital DC Voltage Meter 10A 72v 100v Battery Monitor Impedance Capacity Volt & Wattmeter Energy Tester

Parameter
Test Range
Resulation
Measurement accuracy
Voltage
0-200V. (when the test voltage is <8V, please use the independent power supply mode)
0.01V
1%
Current
 0-10A(no need shunt)
1mA
1%
Power
0-2000W
0.01W
1%
Impedance
 0-1000Ω
 0.1Ω
1%
SOC
 0-100%


Capacity
0-1000AH
 1mAH
1%
Dump energy
Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
Accumulate energy consumption
0~9999kWh
 1Wh
1%
Running time
 0 ~ 999 hour(without load the time will not accumulate)



1. Power consumption
Normal working state: 0.03-1.2 W
Sleeping state: 0.5mW-0.5W
The power consumption is related to the test voltage value, the higher the voltage,the greater the power consumption.
2. Working temperature
-20’C ~ +60’C.

3. Working mode
This meter has two modes: normal display mode and dormant mode. In normal display mode, short press the button to enter the dormant mode, in order to reduce the whole machine power consumption, the backlight and LCD display will be turned off in dormant mode. In dormant mode, short press the button will switch to the normal display mode.
Note: The meter will stop all measurement functions in dormant mode, so please do not switch to dormant mode if normal measurement is performed.

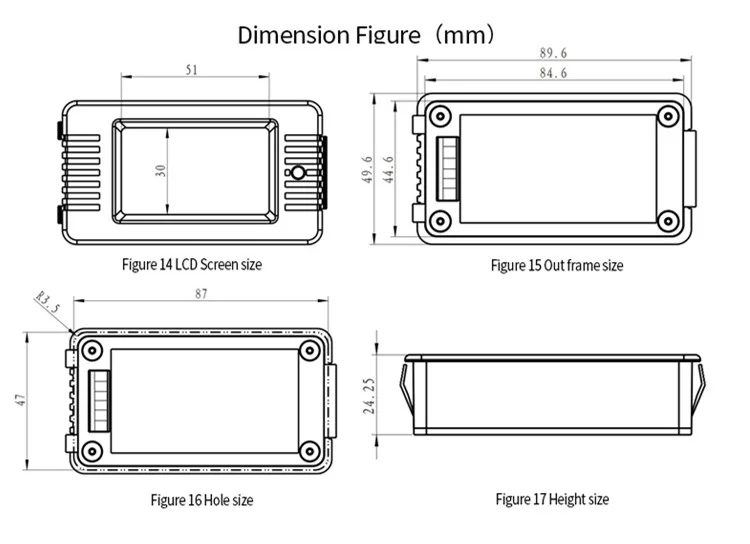

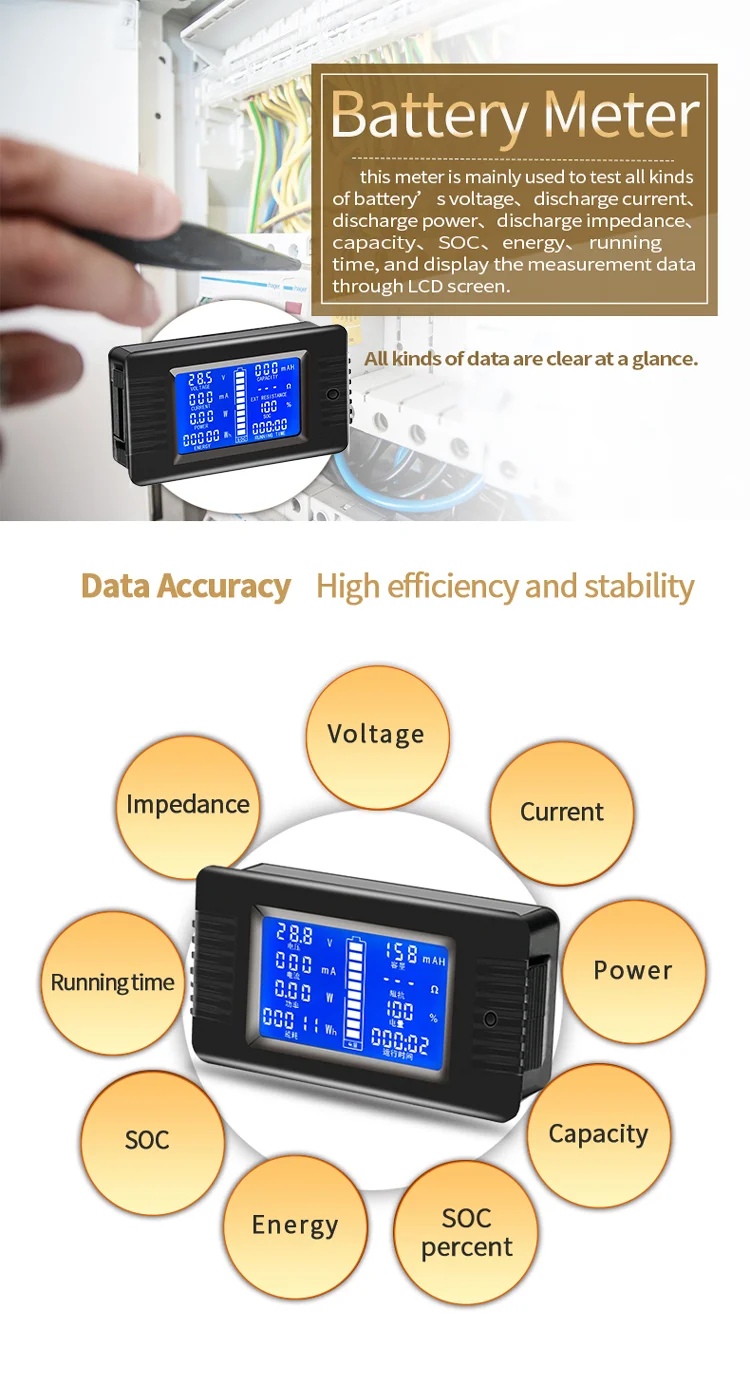

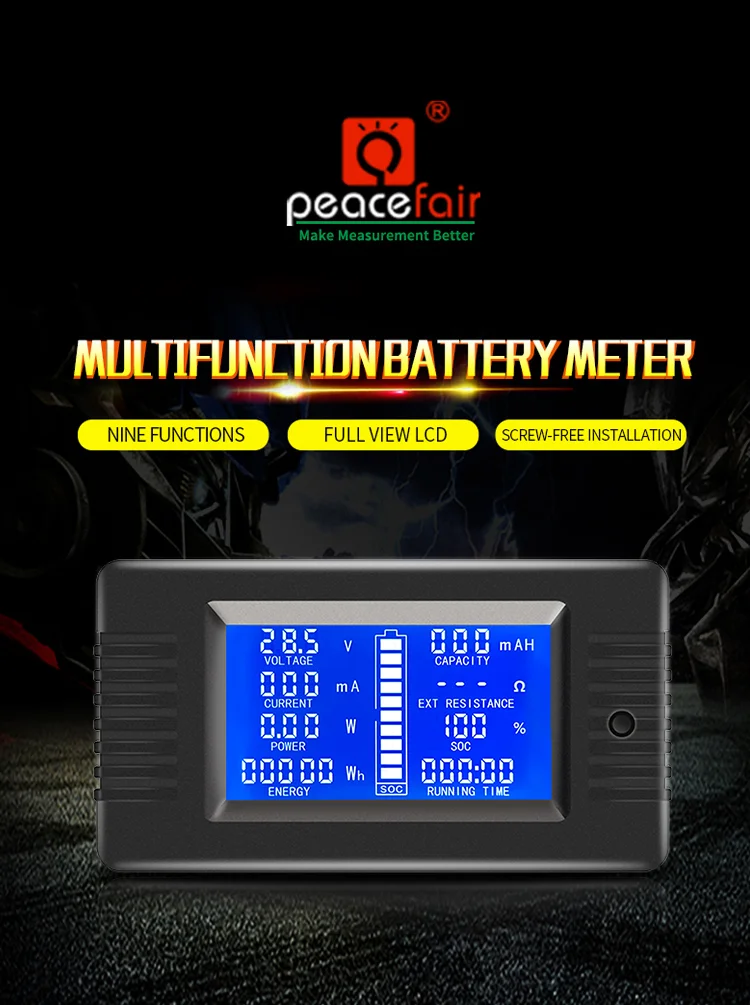

 1.png 2.png 3.png
