Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

2025-07-29 15:08:22

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Main Features :
Serial No. : monica0939

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-PV-2x4mm2-Solar Industrial PV Interconnect Cables 6/10/16mm2 Tinned Copper Single-core Cable With a Service Life of 25 Years

Product descriptions from the supplier

Product Description

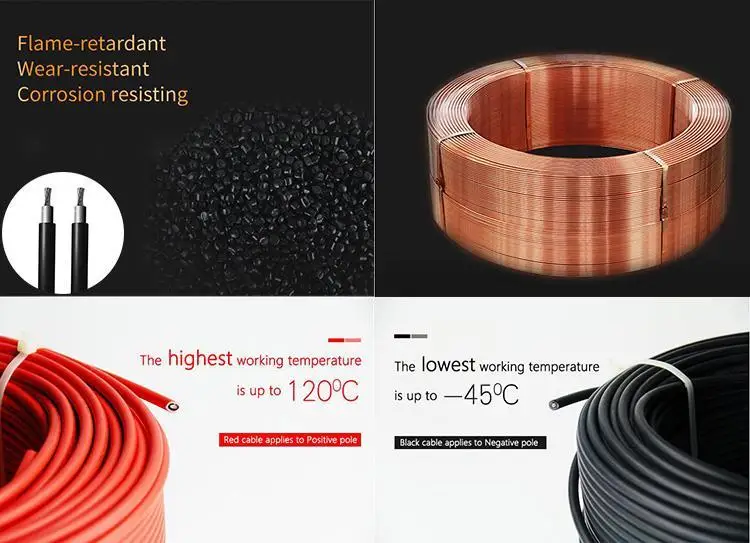

Advantages

TUV SAA Approved solar pv cable 6mm2 Wire for Solar Photovoltaic System

1.Dual wall insulation.Electron beam cross-linked

2.Excellent resistance to U.V,oil,greases,oxygen and ozone

3.Excellent resistance to abrasion

4.Halogen free, flame retardant,low toxicity

5.Excellent flexibility and stripping performance

6.High current carring capacity

7.TUV approved

8.Very long service life > 25 years at 90°C

Product parameters

Single Core	Cross section mm²	Strand design No.x ø(mm)	Conductor diameter mm	Conductor diameter Ω /km	Outer diameter mm
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2
PV-1*10.0 mm²	10.0	200x ø0.25	4.4	2.12	8.3
PV-1*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5
keyword	DC Solar Cable	Solar Cable	solar pv cable	esolar power cable	solar panel cabl

Packing and Shipping

图片关键词

图片关键词

Lable: Solar Industrial PV Interconnect Cables
