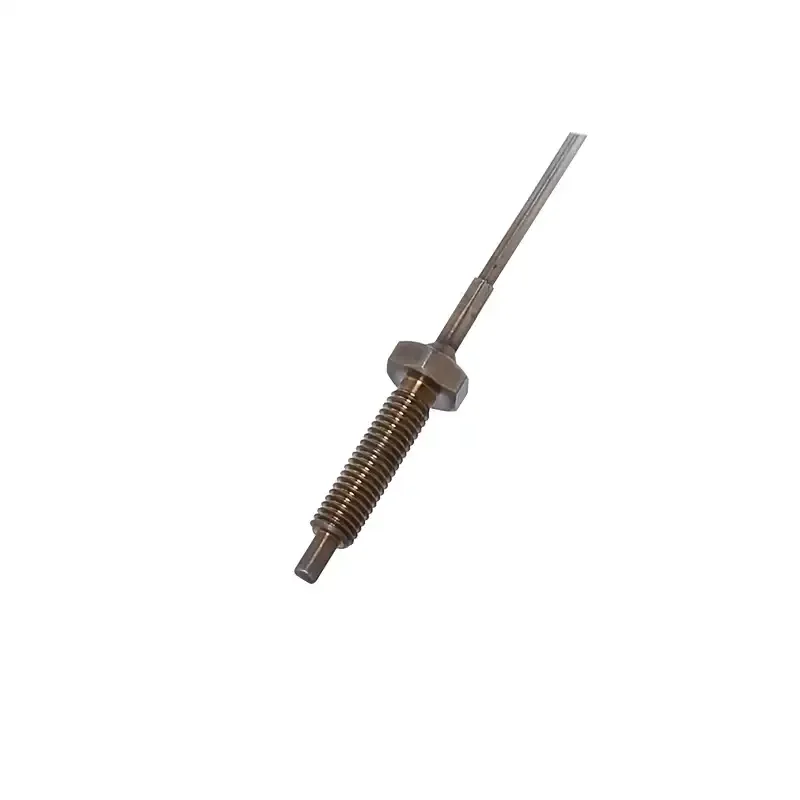

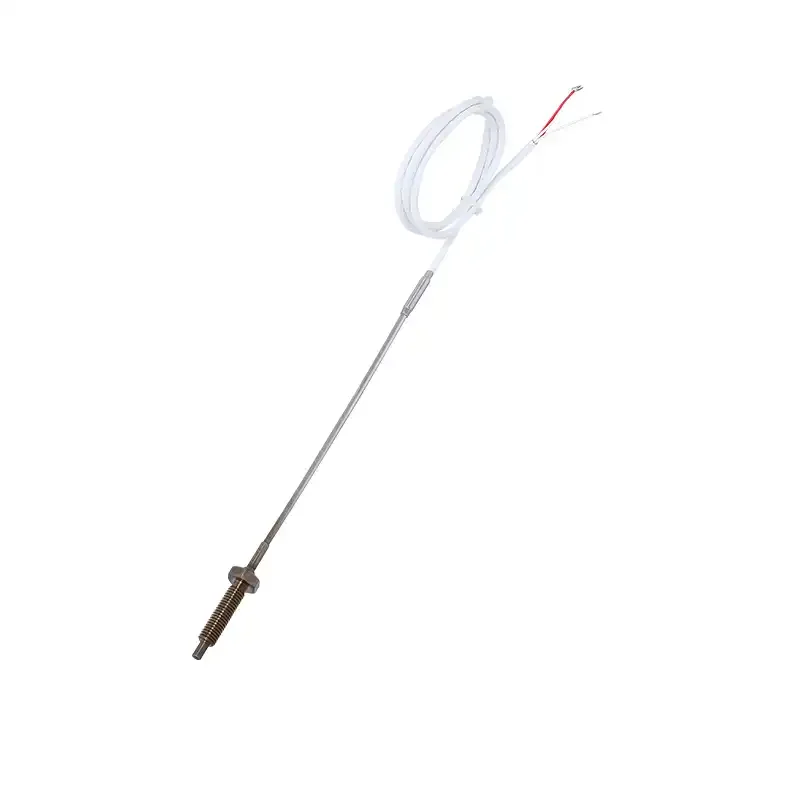

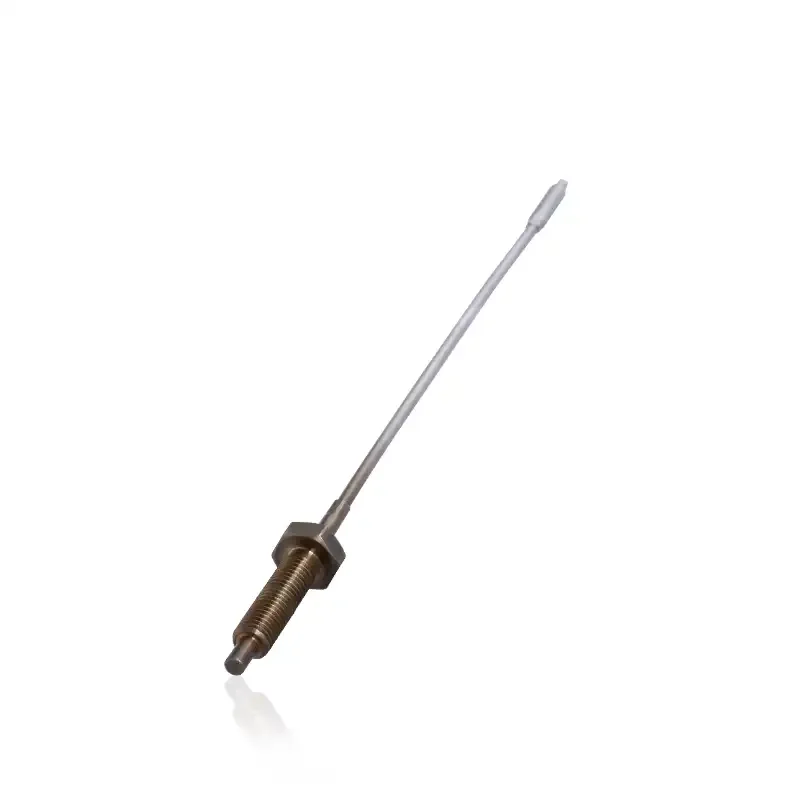

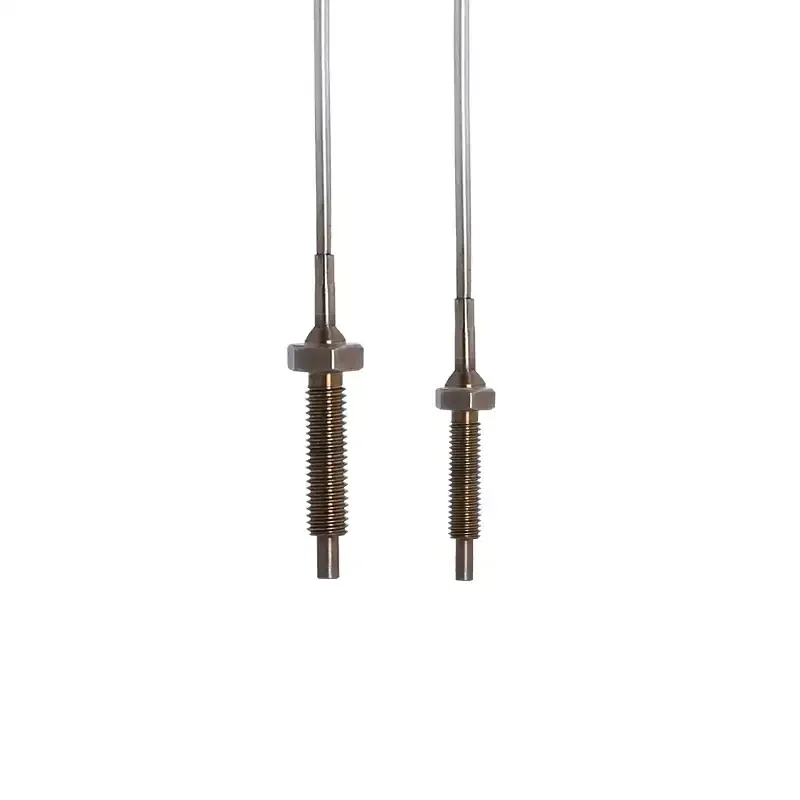

Xtester- CWDZ06 Platinum Resistance Temperature Sensor high temperature resistance
CWDZ06 platinum resistance temperature sensor is designed in stainless steel, which has excellent high temperature resistance and can withstand temperatures up to 500°C. Suitable for measurement of high temperature media, such as high temperature gases, high temperature liquids.
Technical parameters Output: PT100 measuring cell: 1/3B class measuring range: -200~500°C
[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]
Typical applications Heating systems, industrial boilers, gas furnaces, pellet furnaces, heat exchange stations, etc
Measuring medium Liquid or gas (compatible with contact material) |
Technical parameters
Basic parameters | |
Measuring medium | Liquid or gas (compatible with contact materials) |
Measuring range | -200~500℃ |
Measuring element | 1*Pt100(1/3B grade) |
Response time | ≤18s (compliant with IEC60751, 0.4m/s water flow, 10°C step) |
Stable performance | ±0.1%FS/year |
Protection level | IP68 |
Insulation resistance | ≥100MΩ,500VDC |
Dielectric strength | 500VAC |
Environmental conditions | |
Ambient temperature | -200~500℃ |
Overall material | |
shell | 304 stainless steel |
Cables | Stainless steel wire, φ3.2 PTFE shielded compensation cable |
Mechanical stability | |
Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms in accordance with IEC60068-2-27 standard |
