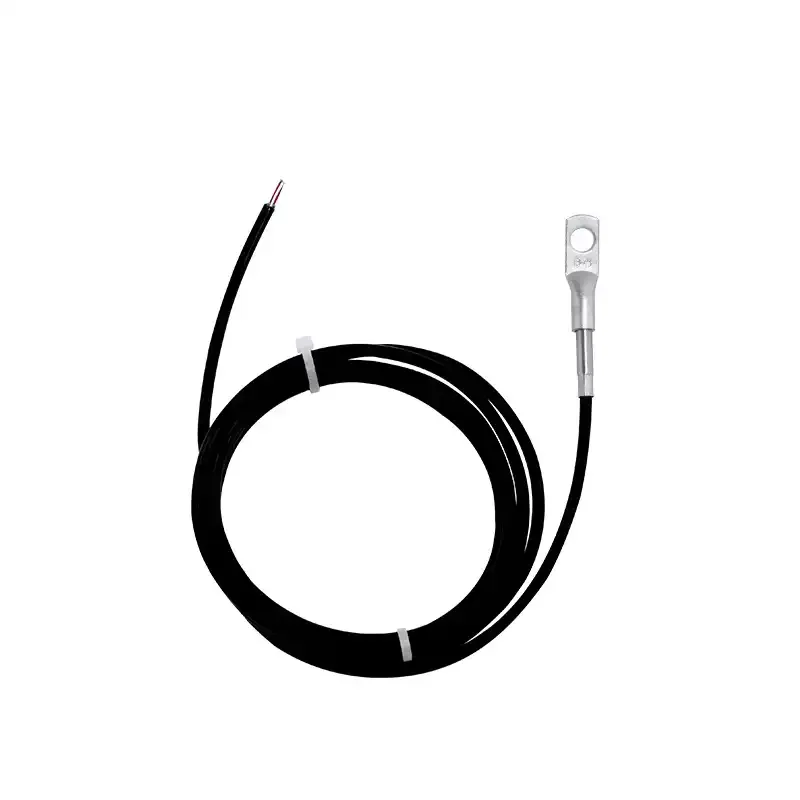

Xtester- CWDZ00 Platinum Resistance Temperature Sensor measuring equipment surface temperature
CWDZ00 platinum resistance temperature sensor is suitable for measuring equipment surface temperature, liquid temperature and gas temperature.
Technical parameters Measuring element: platinum resistance PT100 Measurement accuracy: 1/3B level Measurement range: -50~100 °C, -50~260 °C Output: PT100
[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]
Typical applications General industry
Measuring medium Solid, liquid or gas (compatible with contact material) |
Technical parameters
Basic parameters | |
Measuring medium | Solid, liquid or gas (compatible with contact materials) |
Measuring range | -50~80℃, -50~100℃, -50~260℃, -200~100℃ |
Measuring element | 1*Pt100(1/3B grade) |
Response time | ≤18s (compliant with IEC60751, 0.4m/s water flow, 10°C step) |
Stable performance | ±0.1%FS/year |
Protection level | IP68 |
Insulation resistance | ≥100MΩ,500VDC |
Dielectric strength | 500VAC |

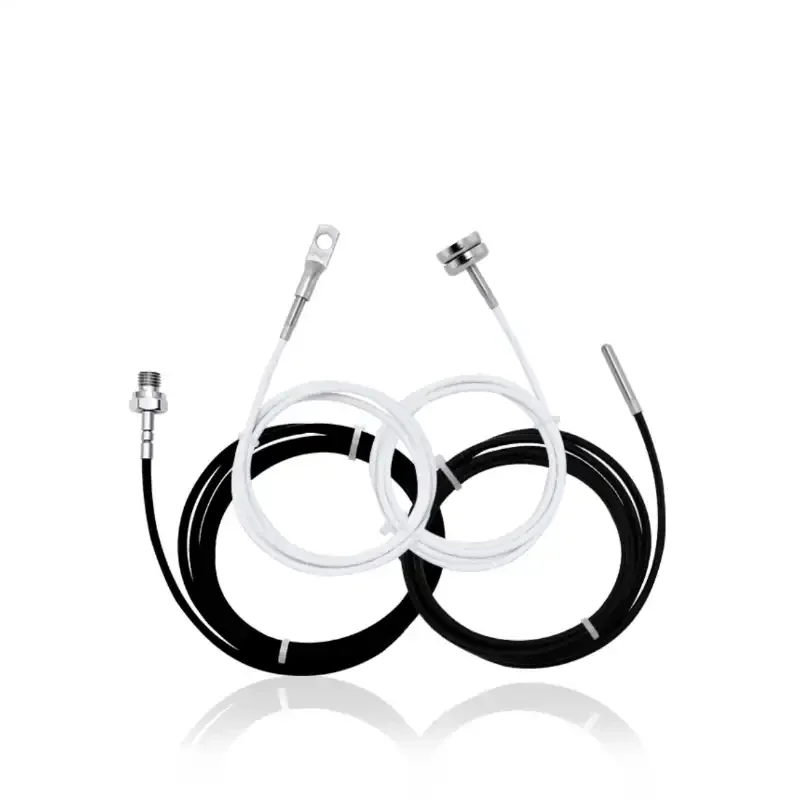

Probe style | Tube protection type, tube protection type, magnetic suction type, nose pressure type, screw-in type |
Overall material | |
shell | 304 Stainless Steel |
Cables | PTFE shielded compensation cable (φ3.2mm) Temperature resistance -200~260℃ |
Mechanical stability | |
Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms in accordance with IEC60068-2-27 standard |
