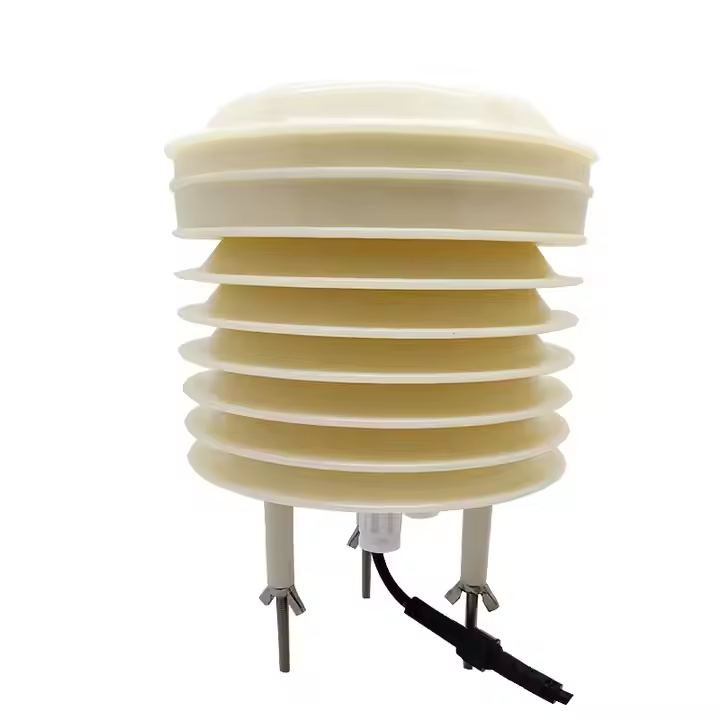

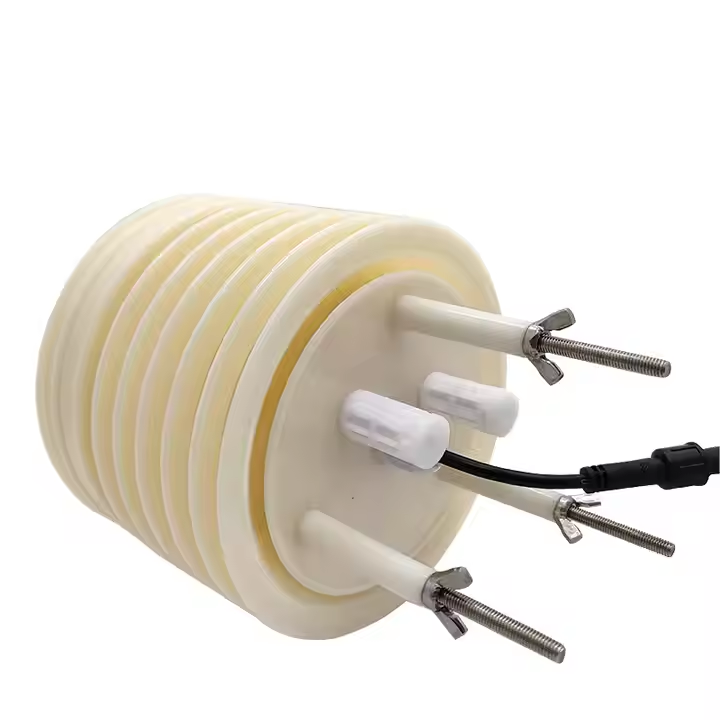

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

2025-07-08 11:11:27

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Main Features :
Serial No. : Lisa0868

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xester-CE RS463 SDI12 MINI DATA LOGGER EASY to INSTALL AIR TEMPERATURE and HUMIDITY 2 in 1 WEATHER SENSOR

Measurement parameters
Parameters name	Air temperature, Air relative humidity 2 IN 1 sensor
Parameters	Measure range	Resolution	Accurancy
Air temperature	-40-120℃	0.1℃	±0.2℃（25℃）
Air relative humidity	0-100%RH	0.1%	±3%RH
Technical parameter
Stability	Less than 1% during the life of the sensor
Response time	Less than 1 second
Working current	85mA@5V,50mA@12V,40mA@24V
Output	RS485, MODBUS communication protocol
Housing material	ABS
Working environment	Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions	-40 ~ 60 ℃
Standard cable length	2 meters
The farthest lead length	RS485 1000 meters
Protection level	IP65
Wireless transmission
Wireless transmission	LORA / LORAWAN, GPRS, 4G,WIFI

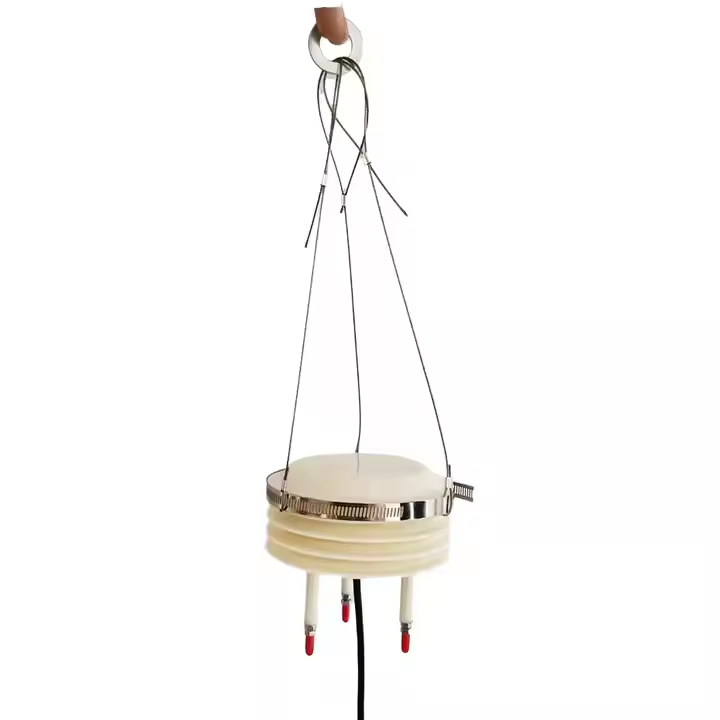

Mounting Accessories
Stand pole	1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to burried in the ground
Cross arm for the install	Optional(Used in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
Surveillance cameras	Optional
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket

Lable: CE RS463 SDI12 WEATHER SENSOR
