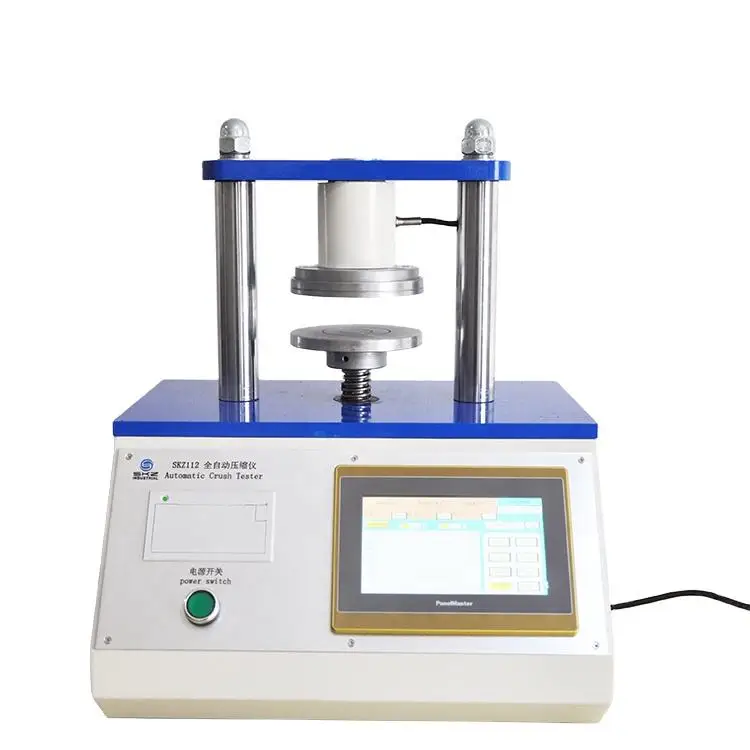

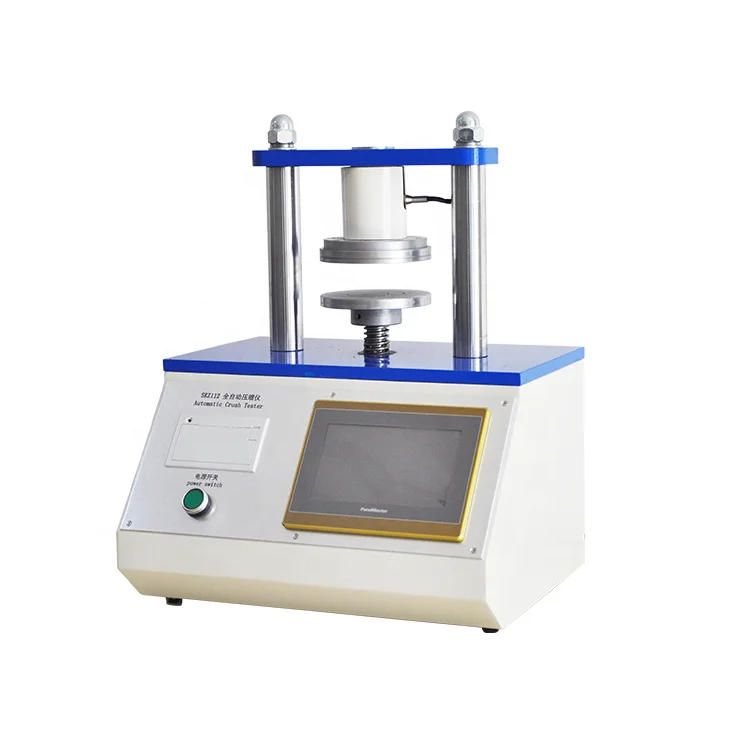

SKZ112 lab crush tester machine for RCT ECT FCT CMT testing

Main Features :
Serial No. : Zoe183

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester- lab crush tester machine for RCT ECT FCT CMT testing

Crush Tester is used to do the Ring Crush test, Edge Crush Test, Flat Press Test, Adhesive Strength Test, and Paper Tube Compress Test.

We also have the accessories for its each test.

Standards:

ISO 3070, ISO 12192-2011, ISO 7263-2011, ISO 3035-2011

Feature:

1. Microprocessor control, automatically carry the test according to testing requests.

2. Protect press sensor through the protection switch for over- loading.

3. Analyzing the group of testing data and to show the maximum, minimum, average,

4. Standard deviation and coefficient of variation displayed by color touch screen, print out the data.

Technical parameter:

Press measuring range	0-5KN
Resolution	1N
Accuracy	±1%
Speed	12.5±2.5mm/min
Platen distance from top to bottom	0-78mm (customized)
Printer	mini-type printer
Power	AC220V 50Hz 1A
Working condition	Temperature: 0-40℃, relative humidity <85%
Dimension	345mm×300mm×505mm
Weight	75kg
