WP9038ADAM Input Digital Input and Output Module RS485 MODBU

Main Features :
Serial No. : Zoe673

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester- WP9038ADAM Input Digital Input and Output Module RS485 MODBUS RTU Communication WELLPRO

Product Description

Six current input channels: DC0 - 20mA / DC4 - 20mA.

Four optically isolated digital input channels (low - level input).

Four optically isolated digital output channels (NPN collector output).

RS485 MODBUS RTU standard communication protocol.

It can be networked with configuration software, programmable logic controllers, or industrial touch panels.

LEDs for indicating the status of communication, digital input, and digital output.

The communication circuit is designed for lightning protection and anti - interference.

It is used for signal acquisition and control in industrial sites.

Specifications

Analog input channels: 6ch.

Analog input range: DC0 - 20mA / DC4 - 20mA.

Analog input accuracy: ±0.02mA.

Digital input channels: 4ch (low - level input).

Digital output channels: 4ch (NPN collector output, 500mA).

Operating temperature: -20 - 70 ℃.

External power supply: DC9V - 30V/2W.

Isolation protection: DC1500V.

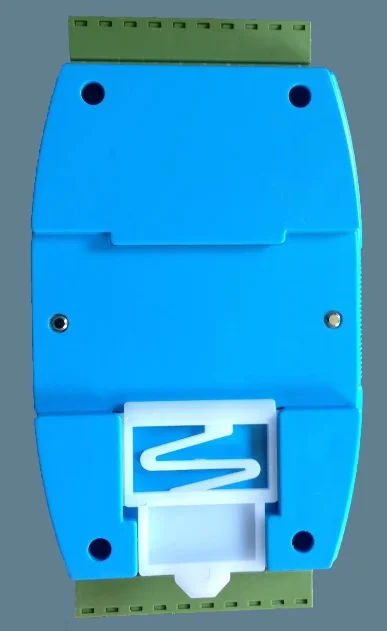

Installation method: Standard DIN rail or screws.

Dimensions: 125 × 73 × 35 mm.
