Xtester-4-20mA SKZ111J Infrared Online Moisture sensor moisture Analyzer for Bran flour protein powder milk powder corn starch yeast

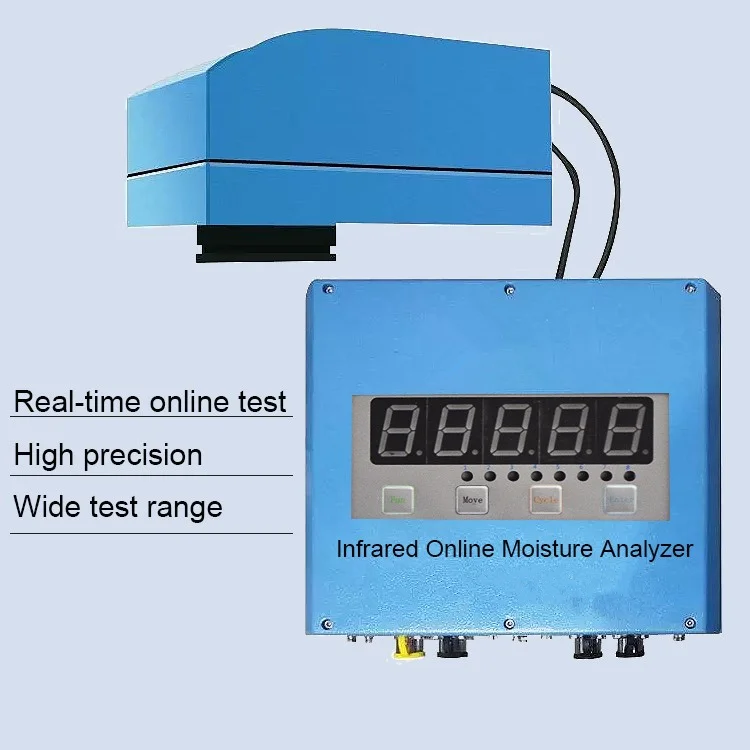

Infrared online moisture analyzer, non-contact, continuous, real-time, on-line measuring moisture. The distance is 20cm-40cm, high accuracy, wide range, and provides 4-20mA current signal, automated control Principle: It is the use of water molecules on the infrared spectral absorption characteristics, to measure the moisture content of the measured object. |
Advantages:
Measuring range: 0-99% (can OEM) The probe is imported from the United States Standard 4-20mA output The probe is not affected by the change of external light without a light shield It has automatic temperature compensation and is not affected by external temperature changes |
Features:

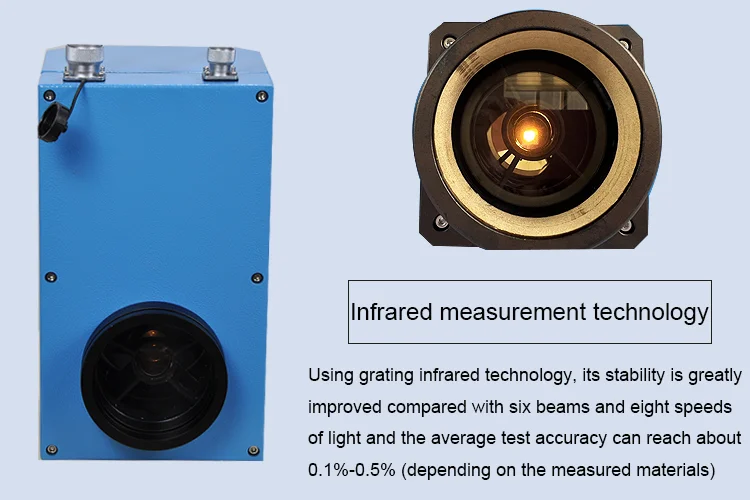

1. Fast measurements: With long-life high-speed brushless motor, imported high response infrared sensors, information processing chip FPGA + DSP + ARM9 combination, to ensure the real-time data acquisition, improve measurement precision and stability. 2. Reliability: With dual optical detectors, the optical system for monitoring and compensation, moisture measurement from the sensor to ensure effects of aging. 3. Non-contact and fast response Online fast continuous measurement and non-contact measurement, the measured object can fluctuate between 20-40cm, online dynamic real-time detection, to achieve a real-time control of product moisture content. 4. Stable performance, high precision 5-beam infrared moisture analyzer, its stability compared four beam and six beam greatly improved, in order to ensure the measurement more accurate and more stable. 5. Easy to install, easy to operate Instrument easy installation, using a predetermined calibration, only need fix the intercept (zero) to complete the demarcation.Using single-chip digital operation, easy to operate |
Specification
Measuring range | 0-99% (can OEM) |
Measurement resolution | 0.01% |
Measuring accuracy | 0.1%FS-0.5%FS |
Repeatability | 0.1% |
Static accuracy | 0. 1% |
Light Diameter | 40mm |
Light beam | 5 |
Infrared wavelength | 1940nm |
Infrared bandwidth | ±50nm |
Filtering range | 0-2.5% |
Measuring channel | 10 |
Current signal | 4-20mA |
Upper and lower control | Self-edit by end user |
Measuring time | 0-60s |
Sampling frequency | 125 ms / time |
Measuring distance | 250mm±100mm |
Measuring thickness | 0.1-0.3mm |
Display | LED 7 digits display |
Cable length between probe and display | 5m |
I/O interface of probe | 7 pin aviation socket, 10 core aviation socket |
I/O interface of display device | 3-core cable, 25 holes D-type socket, 4-core cable, 3-core cable(with 7-core aerial socket) |
Power | 220V/50HZ, 100W |
Operation humidity | ≤90% |
Operation temperature | 0-50℃ |
Light interference | Not affected by external ambient light changes, no hood required for the probe |
Temperature effect | With temperature automatic compensation is basically not affected by external temperature changes |
Gross weight | 17.5kg |
Packing size | 440*340*510mm |
Packing List
Machine | 1pc |
Data transmission line | 2pc |
Controller | 1pc |
The lens is connected to the data line | 1pc |
Power cord | 1pc |
