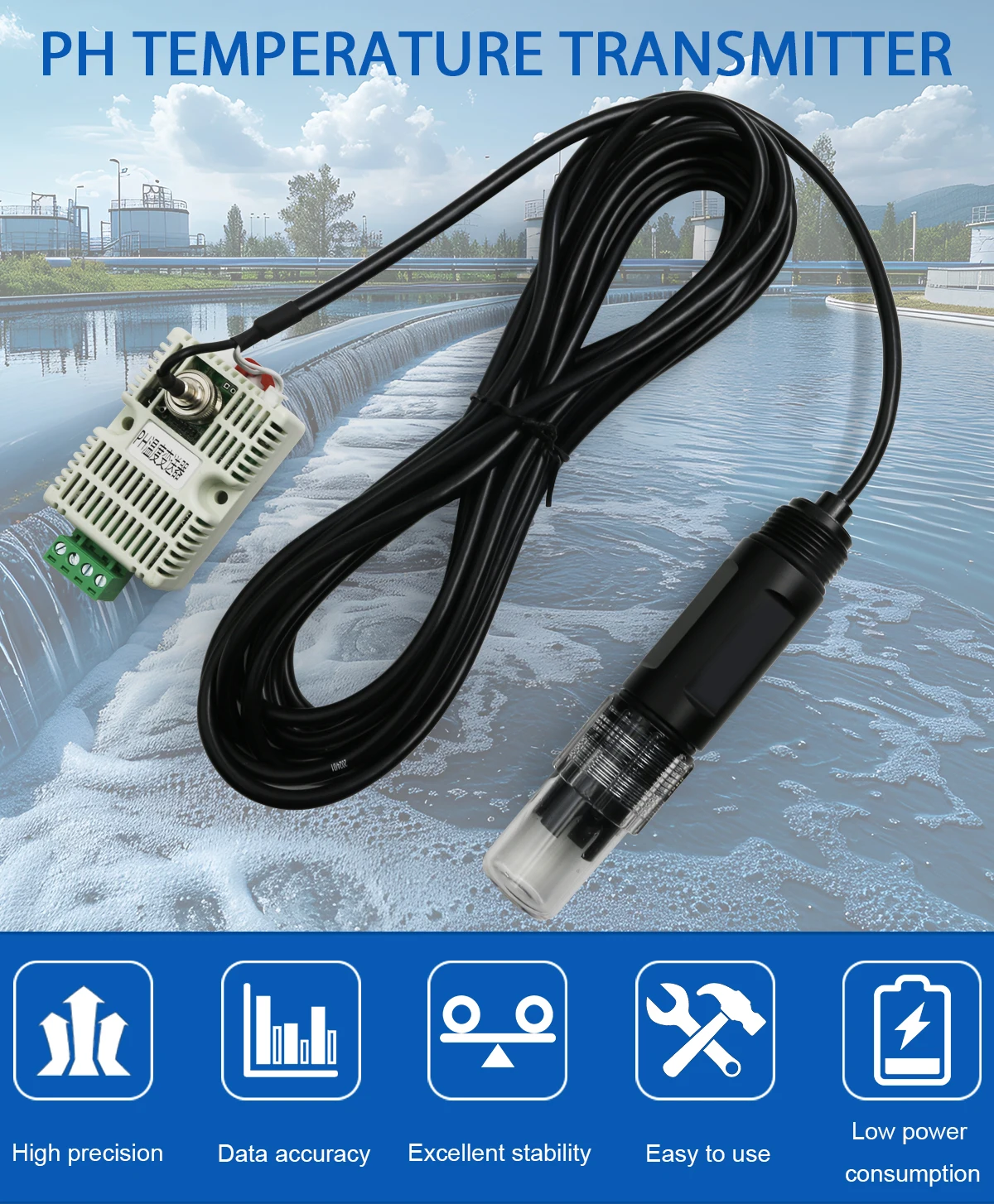

Xtester-RS485 4-20mA 0-5V 0-10V Liquid Electrode Water PH Meter Laboratory With Temperature
Products:
temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc. |
Product Description
Type summary
| |||
Product number | Range | pH electrode | Output Signal |
LD144AA | 0.0~14.0pH, -20℃~+80℃ | without | 0-5V |
LD144AB | 0.0~14.0pH, -20℃~+80℃ | without | 0-10V |
LD144AC | 0.0~14.0pH, -20℃~+80℃ | without | 4-20mA |
LD144AD | 0.0~14.0pH, -20℃~+80℃ | without | RS485 |
LD144BA | 0.0~14.0pH, -20℃~+80℃ | ABS electrode | 0-5V |
LD144BB | 0.0~14.0pH, -20℃~+80℃ | ABS electrode | 0-10V |
LD144BC | 0.0~14.0pH, -20℃~+80℃ | ABS electrode | 4-20mA |
LD144BD | 0.0~14.0pH, -20℃~+80℃ | ABS electrode | RS485 |
LD144CA | 0.0~14.0pH, -20℃~+80℃ | PTFE electrode | 0-5V |
LD144CB | 0.0~14.0pH, -20℃~+80℃ | PTFE electrode | 0-10V |
LD144CC | 0.0~14.0pH, -20℃~+80℃ | PTFE electrode | 4-20mA |
LD144CD | 0.0~14.0pH, -20℃~+80℃ | PTFE electrode | RS485 |
LD144DA | 0.0~14.0pH, -20℃~+80℃ | Stainless steel electrode | 0-5V |
LD144DB | 0.0~14.0pH, -20℃~+80℃ | Stainless steel electrode | 0-10V |
LD144DC | 0.0~14.0pH, -20℃~+80℃ | Stainless steel electrode | 4-20mA |
LD144DD | 0.0~14.0pH, -20℃~+80℃ | Stainless steel electrode | RS485 |
LD144FA | 0.0~14.0pH, -20℃~+80℃ | ABS electrode with temperature | 0-5V |
LD144FB | 0.0~14.0pH, -20℃~+80℃ | ABS electrode with temperature | 0-10V |
LD144FC | 0.0~14.0pH, -20℃~+80℃ | ABS electrode with temperature | 4-20mA |
LD144FD | 0.0~14.0pH, -20℃~+80℃ | ABS electrode with temperature | RS485 |
| Product name | Temperature and PH sensor |
| Working voltage | DC 12-24V |
| Working temperature | 0~80℃ |
| Detection range | PH 0-14, 0-80℃ |
| Output signal | 0-5V, 0-10V, 4-20mA, RS485 |
| Accuracy | ±0.1PH, ±0.5℃ |
| Response time | ≤5S |
| Settling time | ≤60S |
| Product size | 65*46*28mm(module) |
| Product weight | 800g |
| Application | Suitable for electroplating, fermentation, food processing, sewage treatment, metallurgical environmental protection and other occasions. |
