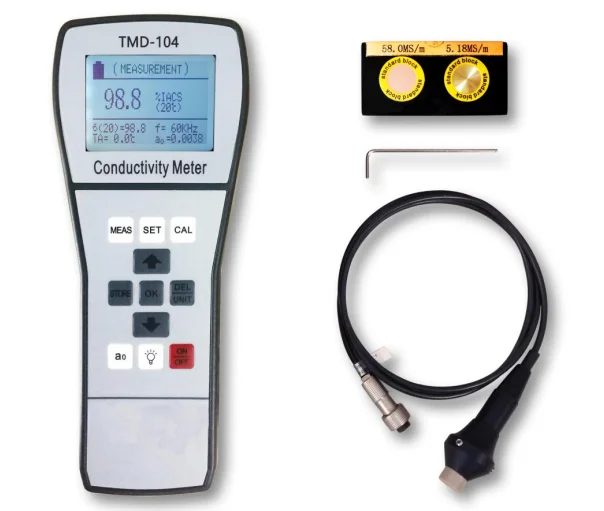

Xtester-Portable Digital Eddy Current Conductivity TMD-104 Tester Aluminum Conductivity Meter
| Eddy Conductivity Meter of TMD-104 is the first generation of Digital Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, etc. |
Application fields
Distinguishing and examining alloy Examining heat-treating state, during manufacturing, as well as inspecting over-heated damage during service (such as airplane). Detecting grades of materials Metal classification Detecting the density of powder-metallurgical parts Detecting the conductivity of conductors during manufacturing and servicing. |
Characteristics of the instrument
Beautiful appearance, easy to carry about and grasp, simple and convenient to use. Big screen, big character typeface; displaying measured result, working frequency, temperature, temperature coefficient, etc. simultaneously. Properly designed with back-light illumination for reading measured data in poor-light environment. Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate. Excellent design of lift-off compensation and temperature compensation of the instrument to ensure the precision of measurement. With interchangeable probes of the instrument, the user oneself is able to change probes provided by our company without matching. With built-in data memory, enough to record 16000 groups of measured data and important measuring parameter; to connect to a computer for forming a complete report. Two kinds of measuring units (MS/m or %IACS) for convenient selection. It is easy to switch to resistivity value directly on the measurement interface. Three kinds of language selection: Simplified Chinese Characters, Japanese and English. |
TECHNICAL PARAMETER
Model Items | TMD-104 |
Working Freq. | 60KHz, sine wave |
Measurement range for conductivity | 7.76 %IACS to 112 %IACS, or 4.5 MS/m to 65 MS/m or resistivity 0.01538 to 0.22222Ω•mm²/m |
Resolving power | 0.01%IACS(when <51%IACS); 0.1%IACS(51%IACS to 112%IACS ) |
Measuring precision | ±0.5% reading |
Lift-off effect | Probe compensation 0.5mm |
Temp. measurement | 0℃ to +50℃(precision 0.5℃) |
Function of auto compensation | Measured result of conductivity, adjusting to value at temp.20℃ automatically; Manual input temperature compensation mode |
Probes | The probe of diameter ¢14mm, working freq. 60KHz.The probe is made of imported material, wear-resistant and high temperature resistant, and can be replaced intelligentlyr . |
Normal working environment | Temp. 0℃ to +50℃; relative humidity, 0 to 95% |
Display | Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously. |
Power supply | Equipped with a lithium ion battery of 2200mA/h |
Reading memory | Storage for 16000 groups of measured data files. |
Communication with PC machine | RS 232 interface |
Weight of host machine | 0.5kg (including batteries) |
Dimension of host machine | 220mmx95mmx55mm |
Shell of instrument | Engineering plastic, high impact-resistance, waterproof shell for this instrument |
Package and protection | High impact-resistance, waterproof, portable box made of aluminium alloy; inside of it there are instrument, probes, communication cable, operation manual, conductivity blocks, recharger, instrument stand, U- disk (or optical disk). |
Accessories | 2 pieces of standard conductivity blocks ,You can purchase more blocks if you wish. |
