Xtester-PD194Z-E14 Multi Circuit Din Rail Mounted Remote Management Digital Power Meter

Product Introduction

Energy Accuracy 0.5s Smart Electric Power Monitor Meter PD194Z-E14 can measure parameters of multiple three phase or single phase power grid such as voltage, current, power, frequency, energy, demand, extreme value, total harmonic distortion, 2nd‐31st harmonics, voltage and current unbalance and multi‐rate electric energy measurement. The maximum measurement circuits of PD194Z‐E14 is four three‐phase circuits or twelve one single‐phase circuits. The meter adopts access mode of external current transformer and modular design which is convenient for user to choose different functions to meet different requirements at field.

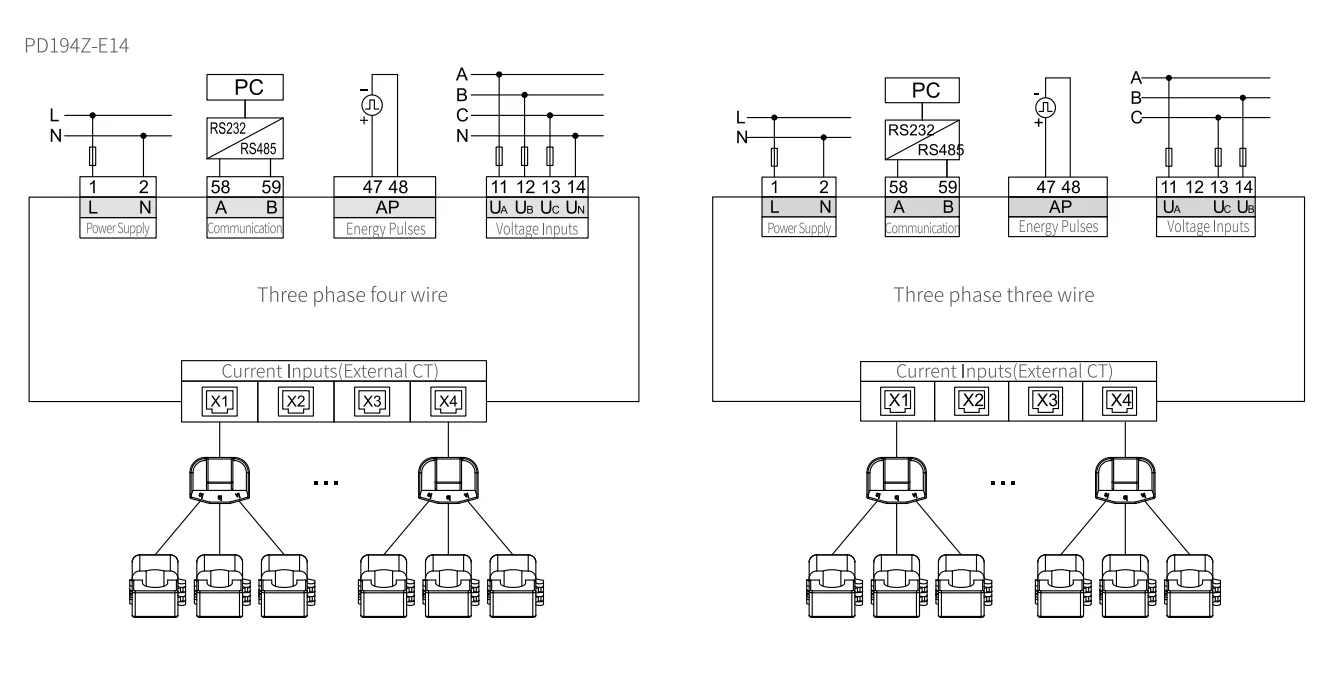

Technical Parameter

Accuracy	V/A	0.20%
	P/Q/S/PF	0.50%
	F	±0.01 Hz
	土kWh	Class O.5S
	±kvarh	Class 2
Voltage Input	Rated value	3x220V/380V
	Overload	Continuous: 1.2Vn Instantaneous: 2Vn/10s
	Burden	0.1 VA (per phase)
	Impedance	21.7MQ
	Frequency	45Hz〜65Hz
Current Input	Rated value	External CT
	Overload	Continuous: 1.2ln Instantaneous: 2ln/5s
	Burden	<0.2VA (per phase)
	Impedance	<20mC
Residual Current Input		AC 1mA
Auxiliary Power Supply	Working range	AC/DC 80〜270V
Auxiliary Power Supply	Consumption	<5VA
Communication Port	Default	RS485, Modbus-RTU, up to 9600bps
	LoRa, EC2 module	470MHz
	GPRS.EC4 module	850/900/1800/1900MHZ
	N^oT, EC6 module	Band3/5/8
Energy Pulse Output		1 photocoupler output, pulse width (80±20%) ms
Optional Module (EK1)	Digital inputs	Dry digital inputs, Isolation: 22kVAC
Optional Module (EK1)	Relay outputs	Contact rated at AC 250V/5A or DC 30V/5A
Environment Conditions	Operating temperature	-25C 〜70 C
	Storage temperature	-30C~80C
	Relative humidity	M93%
	Altitude	<2500m

Lable: PD194Z Digital Power Meter
