Xtester-Heavy Duty Digital Coating Thickness Meter NF Type Eddy Current Probe Micro Coating Tester for Paint Enamel

  • Main Features : Xtester-Heavy Duty Digital Coating Thickness Meter NF Type Eddy Current Probe Micro Coating Tester for Paint Enamel
  • Serial No. : Owen0208

Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Xtester-Heavy Duty Digital Coating Thickness Meter NF Type Eddy Current Probe Micro Coating Tester for Paint Enamel

Product Description

图片关键词

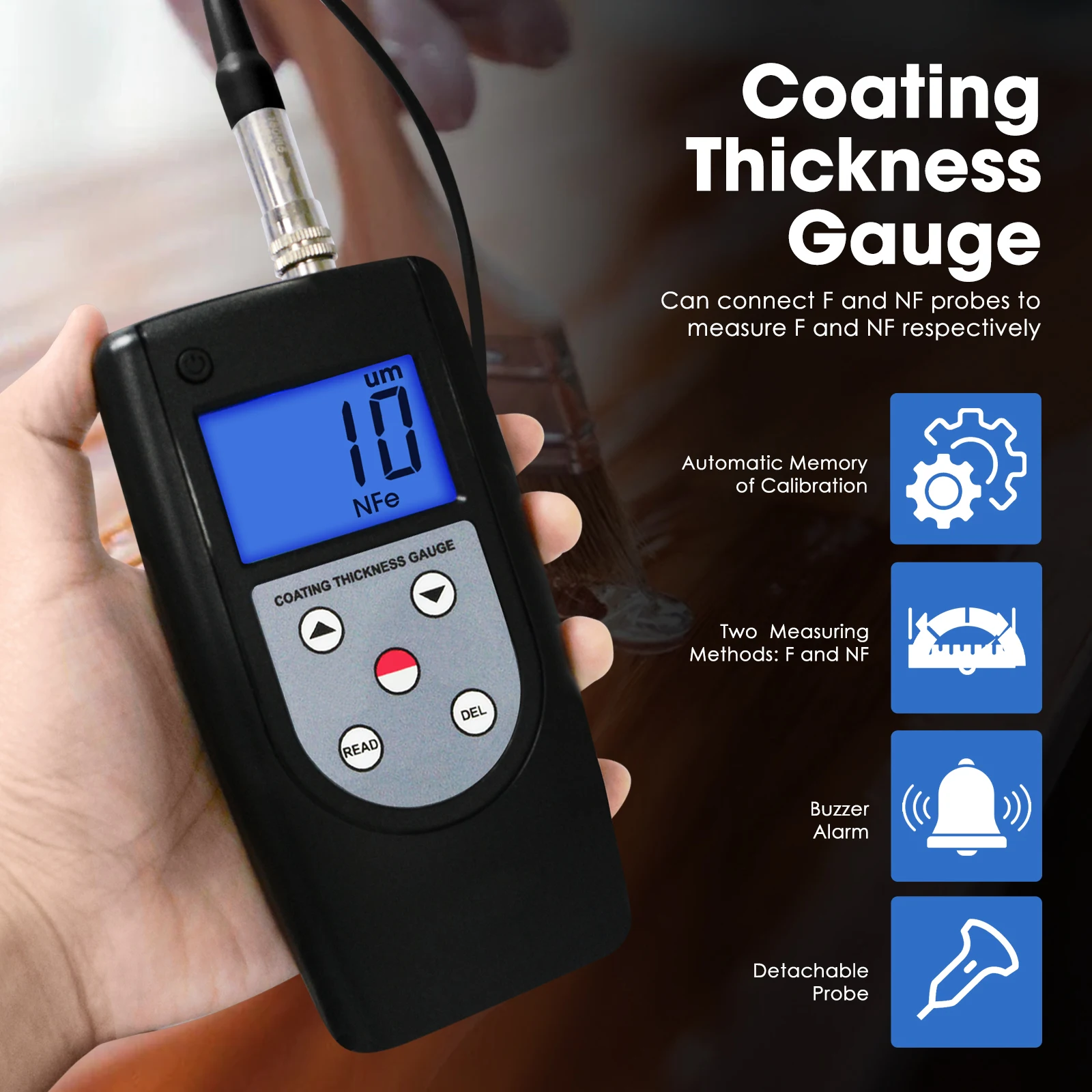

Key Features

* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.


* Specially for the thickness measurement of coating on small workpiece.


* The N probes measure the thickness of non - magnetic coatings on nonmagnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings , powder, etc. applied to aluminum, brass, non - magnetic stainless steel, etc.


* Automatic substrate recognition.


* Manual or automatic shut down.


* Two measurement mode: Single and Continuous


* Wide measuring range and high resolution.


* Metric/Imperial conversion.


* Digital backlit display gives exact reading with no guessing or errors.


* Can communicate with PC computer for statistics and printing by the optional cable.


SET INCLUDES

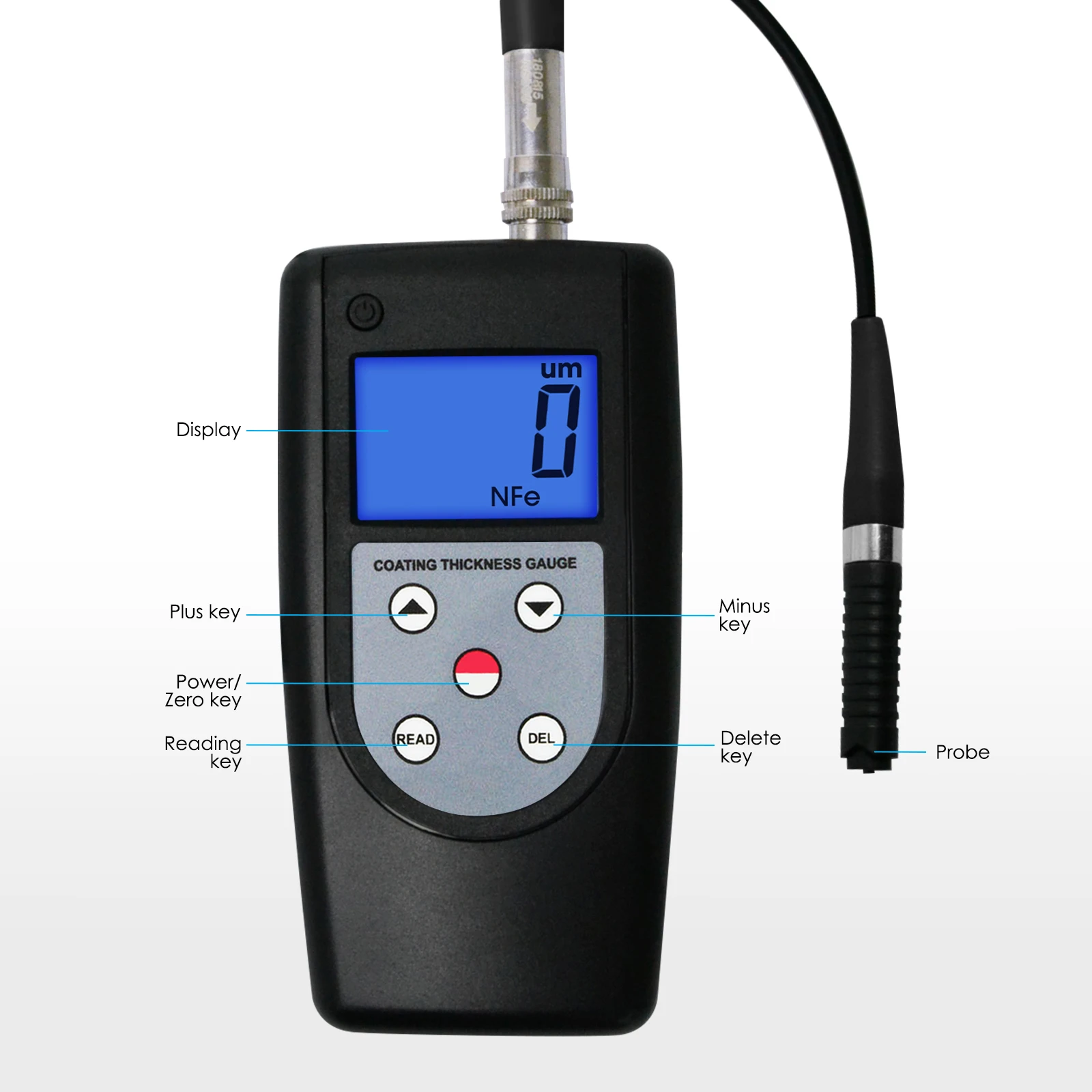

Main Unit

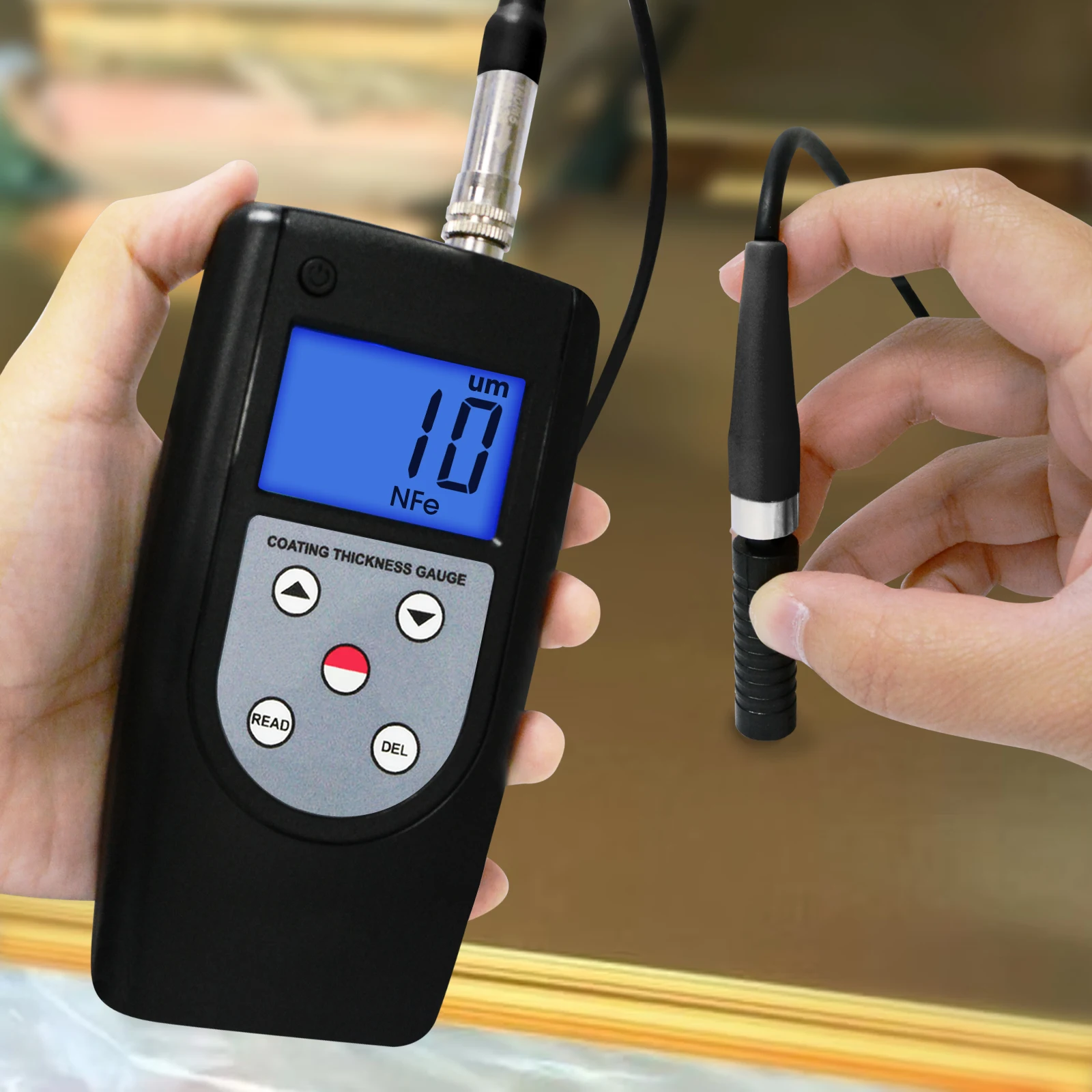

Probe (NF Type) Calibration Base (NF)
Calibration Foils (1 set, 2 pcs)
Carrying Case
Operation Manual

Optional:

RS-232CData Cable with software
Bluetooth Data Adapter with software
图片关键词
Principles and Applications
Principle
Applications
Examples
NF Type
Eddy Current
(Aluminium Base)
Measure the thickness of non-conductive coatings on non-magnetic metals
Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

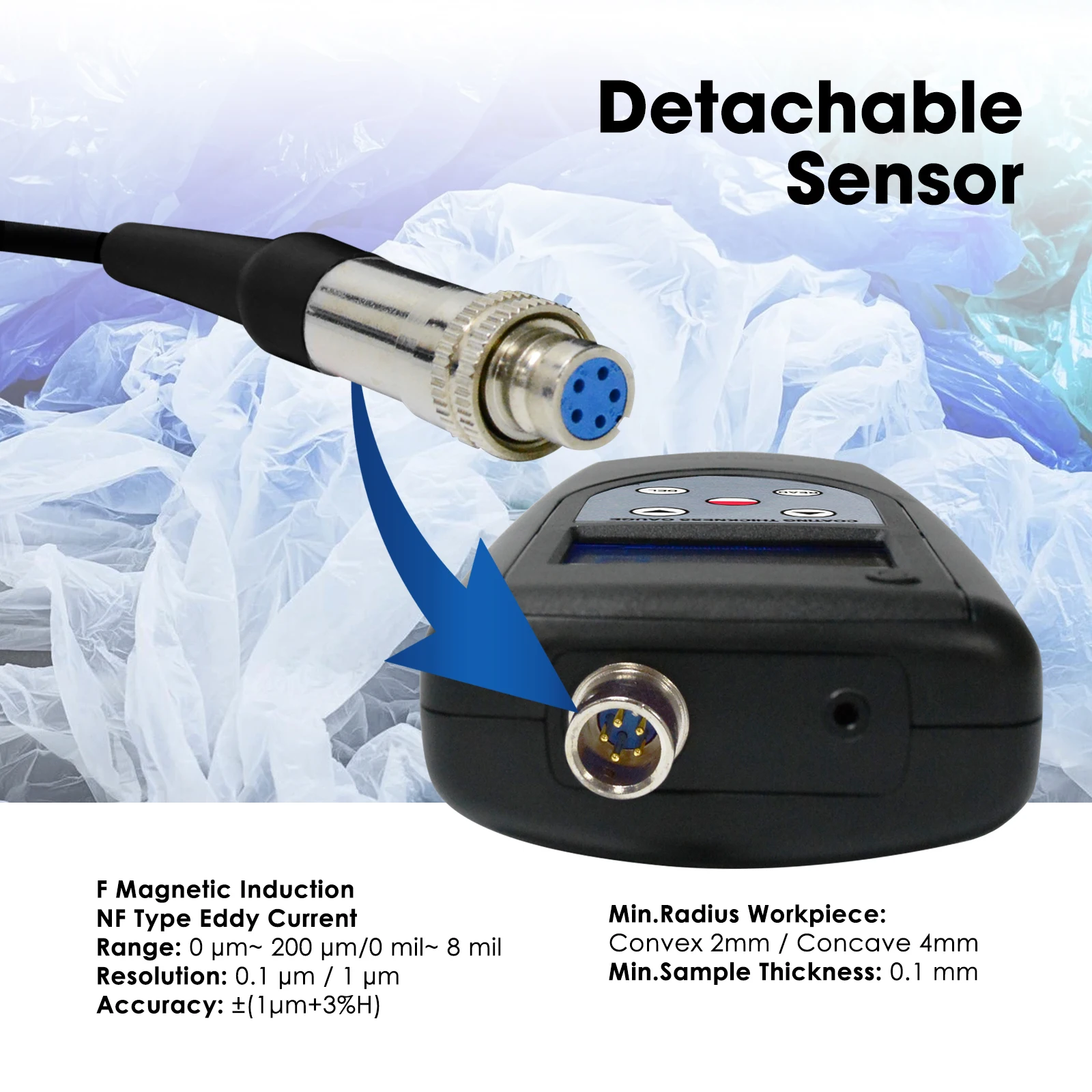

Specification

Range
0 µm~ 200 µm / 0 mil~ 8 mil
Resolution
0.1 µm / 1 µm
Accuracy
±(1μm+3%H)
Minimum Radius Workpiece
Convex 2 mm / Concave 4 mm
Min. Sample Thickness
0.1 mm
Functions
Battery Indicator & Automatic Power Off
Operating Conditions
Temperature : 0°C ~ 40°C
Humidity : 10% RH ~ 90% RH

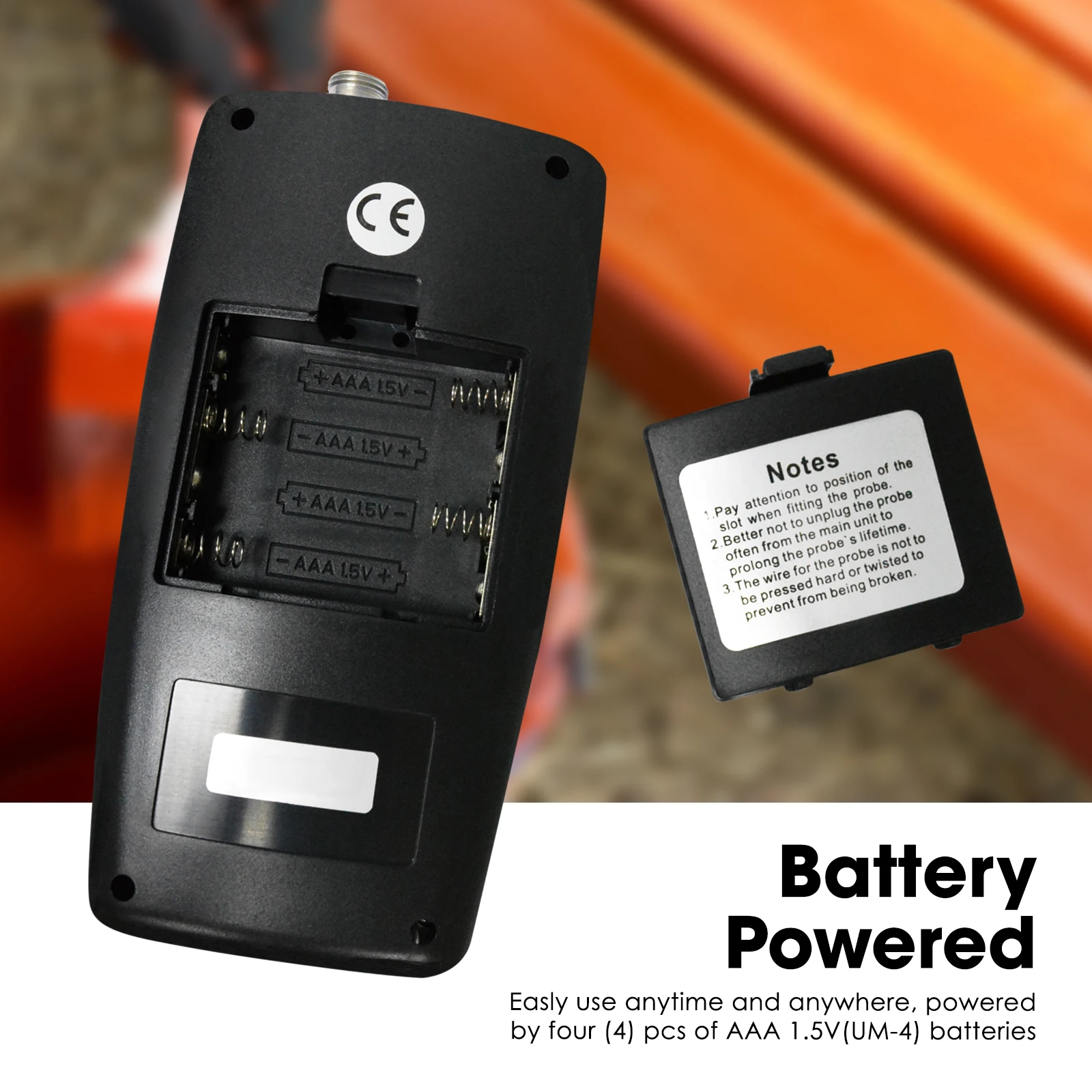

Power Supply
4 x 1.5V AAA (UM-4) Battery
