Xtester- EL 7.94 PC 80%Nickel/PB 48%0.15T,0.2T,0.35T,transformer Nickel lamination core,Ni PB Core,Ni PC Core
PATTERNS | A | B | C | D | E | F | G | H | I | GAP | ØK | T | GRADE |
EL 7.72 ( EL 100 ) | 7.72 | 9.90 | 2.54 | 1.32 | 1.27 | 8.48 | 1.42 | 0.15 / 0.20 | PB / PC | ||||

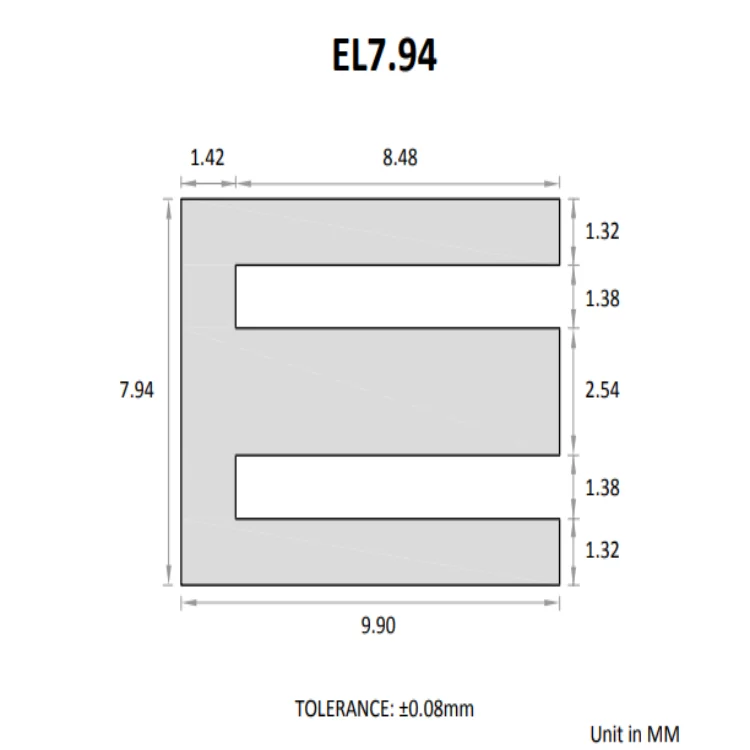

EL 7.94 | 7.94 | 9.90 | 2.54 | 1.32 | 1.38 | 8.48 | 1.42 | 0.15 / 0.20 | PB / PC | ||||
EL 12.7 | 12.72 | 11.11 | 3.18 | 1.59 | 3.18 | 9.53 | 1.58 | 0.20 / 0.35 | PB / PC | ||||
EL 14 | 14.00 | 10.60 | 3.50 | 1.80 | 3.50 | 8.80 | 1.80 | 0.20 / 0.35 | PB / PC | ||||
EL 16 | 16.00 | 14.00 | 4.00 | 2.00 | 4.00 | 12.00 | 2.00 | 0.15 / 0.20 / 0.35 | PB / PC | ||||
EL 16(LOSS) | 16.00 | 16.00 | 4.80 | 2.40 | 3.20 | 13.60 | 2.40 | 0.15 / 0.20 / 0.35 | PB / PC | ||||
EL 19 | 19.00 | 15.00 | 4.75 | 2.375 | 4.75 | 12.50 | 2.50 | 0.15 / 0.20 / 0.35 | PB / PC | ||||
EL 19(LOSS) | 19.00 | 18.00 | 4.90 | 2.40 | 4.65 | 14.00 | 4.00 | 0.15 / 0.20 / 0.35 | PB / PC | ||||
EL 186 | 19.04 | 11.13 | 4.76 | 2.38 | 4.76 | 8.73 | 2.40 | 0.20 / 0.35 | PB / PC | ||||
EL 187 | 19.08 | 15.90 | 4.77 | 2.385 | 4.77 | 13.50 | 2.40 | 0.20 / 0.35 | PB / PC | ||||
EL 20 | 20.00 | 20.00 | 6.00 | 3.00 | 4.00 | 17.00 | 3.00 | 0.20 / 0.35 | PB / PC | ||||
EL 24 | 24.00 | 18.00 | 6.00 | 3.00 | 6.00 | 15.00 | 3.00 | 0.20 / 0.35 | PB / PC | ||||
EL 24-25 | 25.40 | 19.05 | 6.35 | 3.175 | 6.35 | 15.875 | 3.175 | 0.20 / 0.35 | PB / PC | ||||
E 186 | 19.05 | 9.70 | 4.77 | 2.38 | 4.76 | 7.30 | 2.40 | 0.20 / 0.35 | PB / PC | ||||
E 25.4 | 25.40 | 12.70 | 6.35 | 3.175 | 6.35 | 9.525 | 3.175 | 0.20 / 0.35 | PB / PC | ||||
PATTERNS | A | B | C | D | E | F | G | H | I | GAP | ØK | T | GRADE |
ED 8(8X11) | 8.00 | 11.00 | 2.40 | 1.20 | 1.60 | 8.30 | 2.70 | 0.15 / 0.20 | PB / PC | ||||
ED 8(8X14) | 8.00 | 14.00 | 2.40 | 1.20 | 1.60 | 11.30 | 2.70 | 0.15 / 0.20 | PB / PC | ||||
ED 12.6 | 12.60 | 17.00 | 3.80 | 1.90 | 2.50 | 12.90 | 4.10 | 0.20 / 0.35 | PB / PC | ||||
ED 20 | 20.00 | 26.00 | 6.00 | 3.00 | 4.00 | 20.00 | 6.00 | 0.20 / 0.35 | PB / PC | ||||
