Xtester-New High Resolution Digital Tint Meter with 550nm 18mm Thickness Visual Light Window Tint Tool with Stand

  • Main Features : Xtester-New High Resolution Digital Tint Meter with 550nm 18mm Thickness Visual Light Window Tint Tool with Stand
  • Serial No. : Owen0204
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Xtester-New High Resolution Digital Tint Meter with 550nm 18mm Thickness Visual Light Window Tint Tool with Stand

Product Description

图片关键词

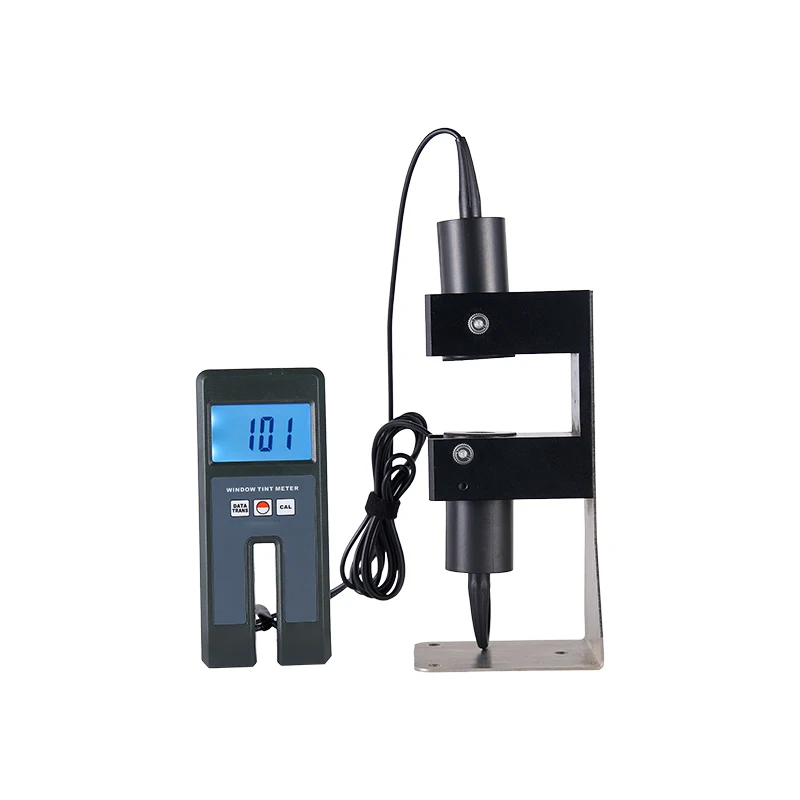

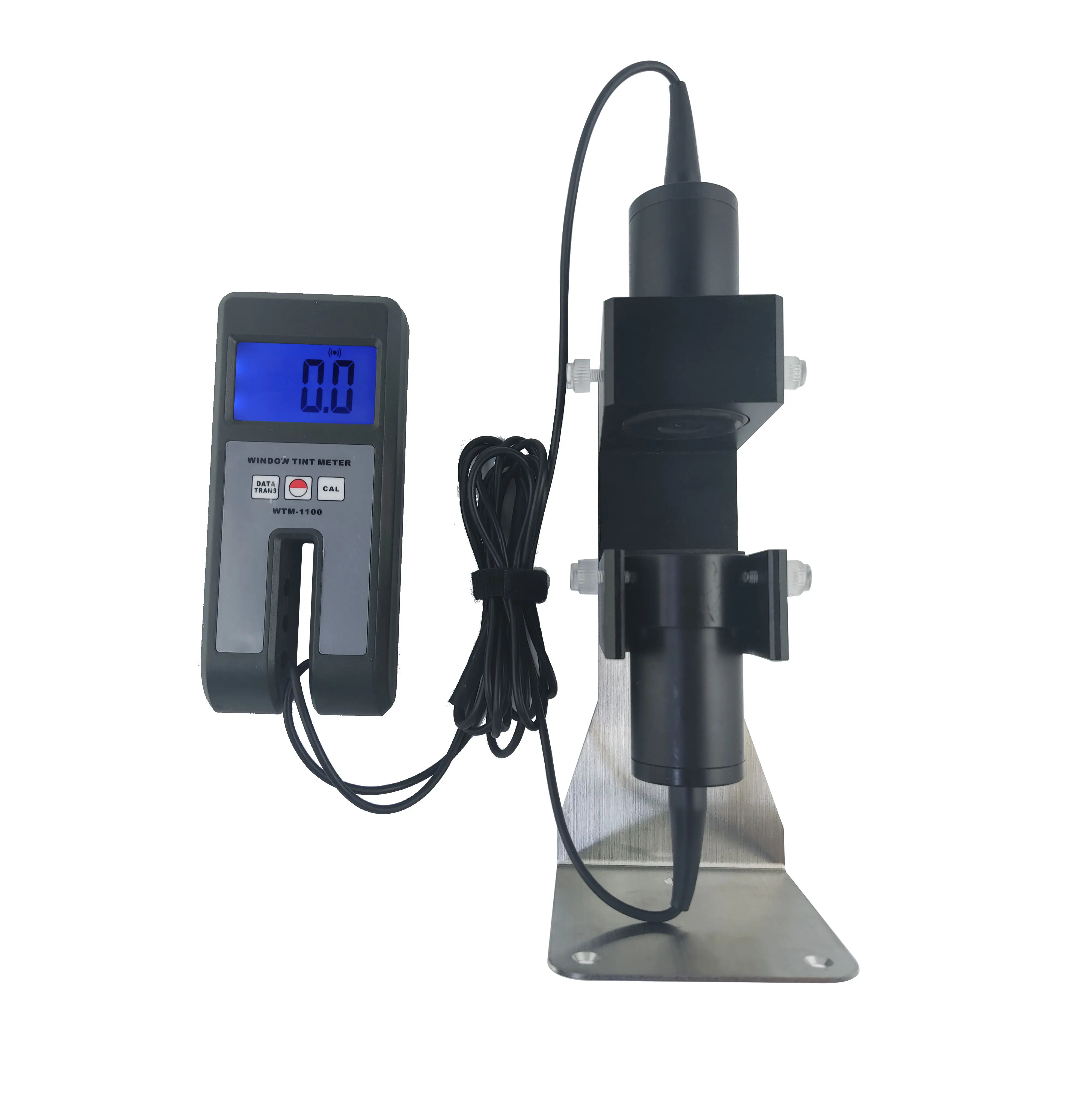

Ensure accuracy in window tint measurement with this easy-to-use Window Tint Meter. Simply slide it over a partially rolled-down window, and within seconds, get precise Visual Light Transmission (VLT) readings on the LCD screen. Designed for professionals an car enthusiasts alike, this compact device features a built-in light source, allowing it to work day or night. Plus, thecontinuous measuring mode provides real-time results for added convenience. Perfect for testing after-market tint films with confidence!
图片关键词


Attributes

* Digital display, wide measurement range, high resolution
* Accurate & reliable reading results
* One key calibration is easy to use.
* Solid structure, small volume, light weight, exquisite, easy to carry
* Continuous measuring mode

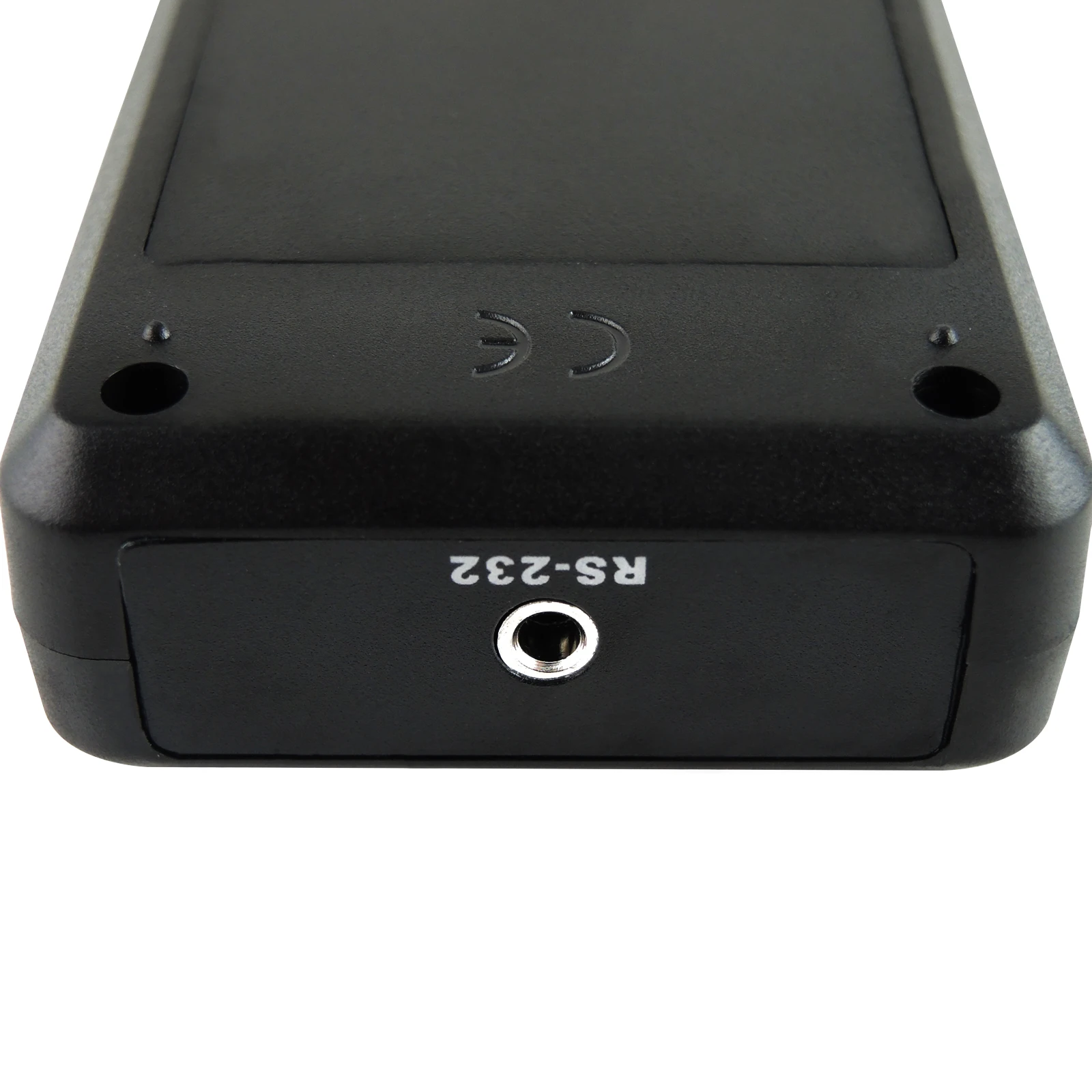

* Can connect with PC computer by the optional cable and the software for RS232C interface (not included in the set).
图片关键词

Specification

Display
10mm LCD
Resolution
0.1
Accuracy
±2%
Wavelength
550 Nanometers
Measurement Range
0~100% Light Transmission
Interface
RS-232C (optional, not included in the set)
Sample Thickness
≤ 18mm / 0.7inch
Operating conditions
0~50°C, <90%RH
Time of Testing
Maximum of 4 seconds
Effects from Stray Light
Not Effected by Stray Light

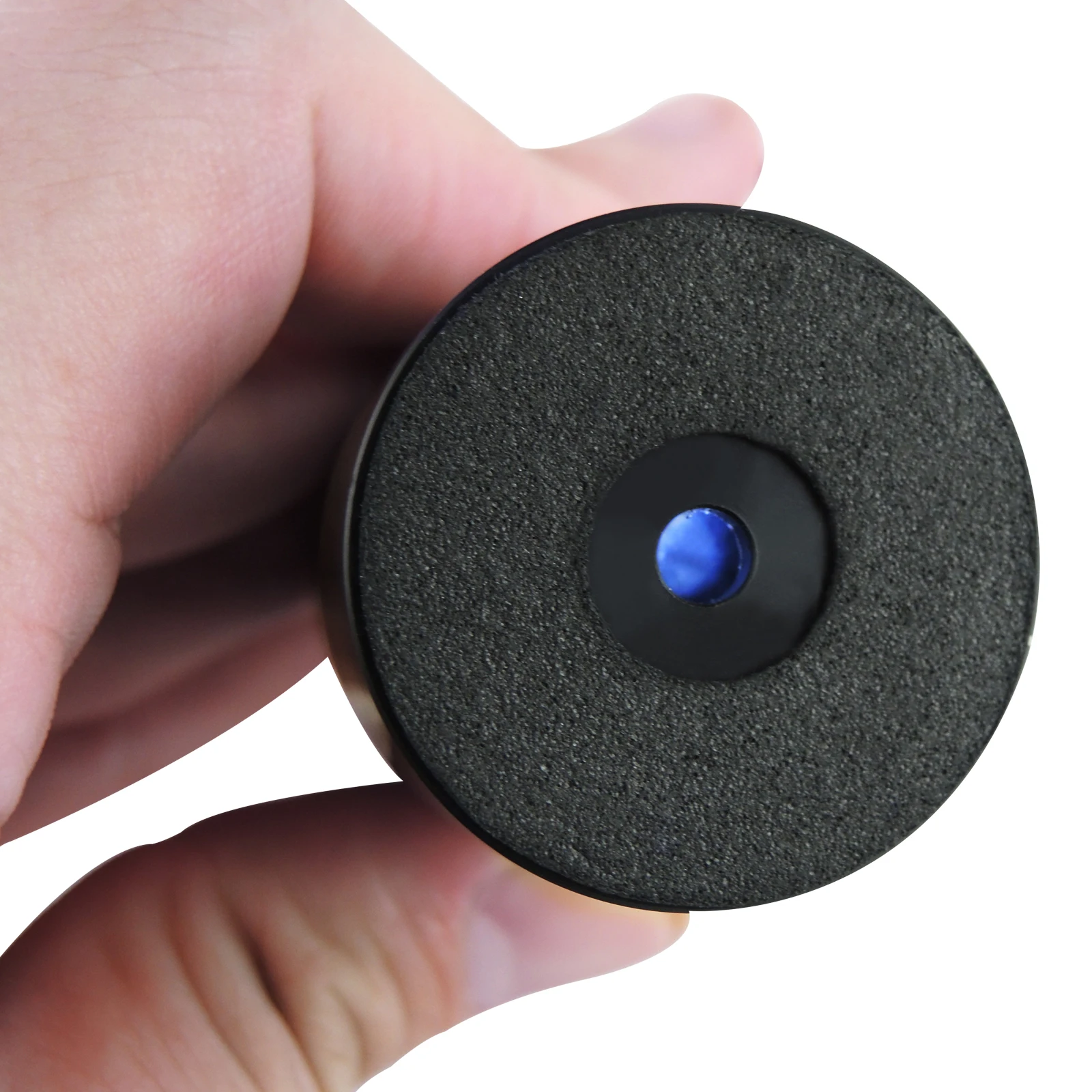

Light Source
LED
Measuring Mode
Single / Continuous
Lamp Life
10 Years
Power Source

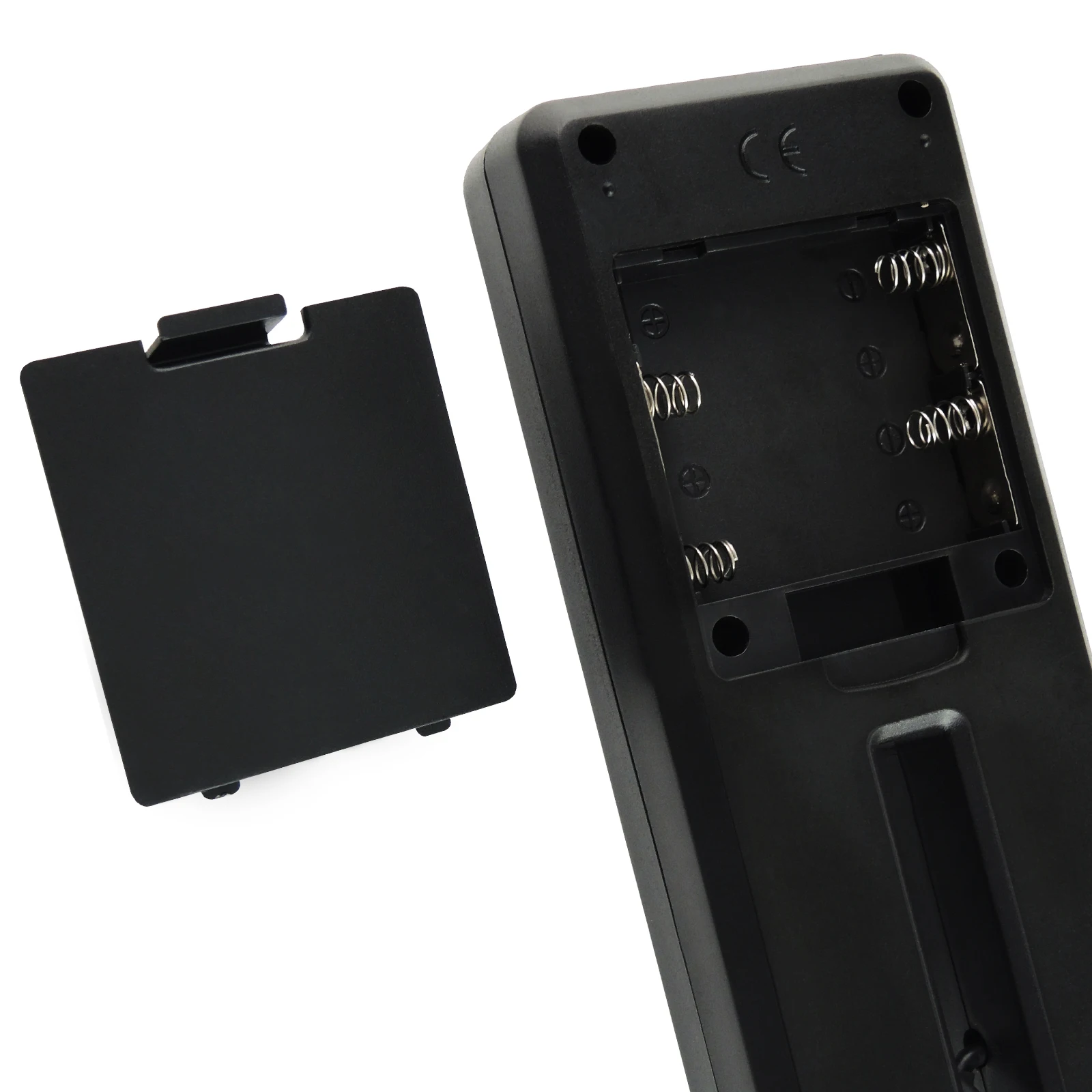

4 x 1.5V AAA Batteries (not included in the set)
Weight
100g (excluding batteries)
Dimensions
 * Main Unit: 126 x 65 x 27mm
 * Sensor: 125 x 38 x 38mm
图片关键词
图片关键词
Wide application
Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel planes (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). It also can be used to determine the turbidity or clarity of liquid samples (water, drinks, and so on).
