Xtester-High Quality Decibel Tester Keypad Lock Protected Simple Operation 60 to 130dB 50 Data Storage Personal Logging Noise Dose Meter

  • Main Features : Xtester-High Quality Decibel Tester Keypad Lock Protected Simple Operation 60 to 130dB 50 Data Storage Personal Logging Noise Dose Meter
  • Serial No. : Owen0215
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Xtester-High Quality Decibel Tester Keypad Lock Protected Simple Operation 60 to 130dB 50 Data Storage Personal Logging Noise Dose Meter

Product Description

图片关键词

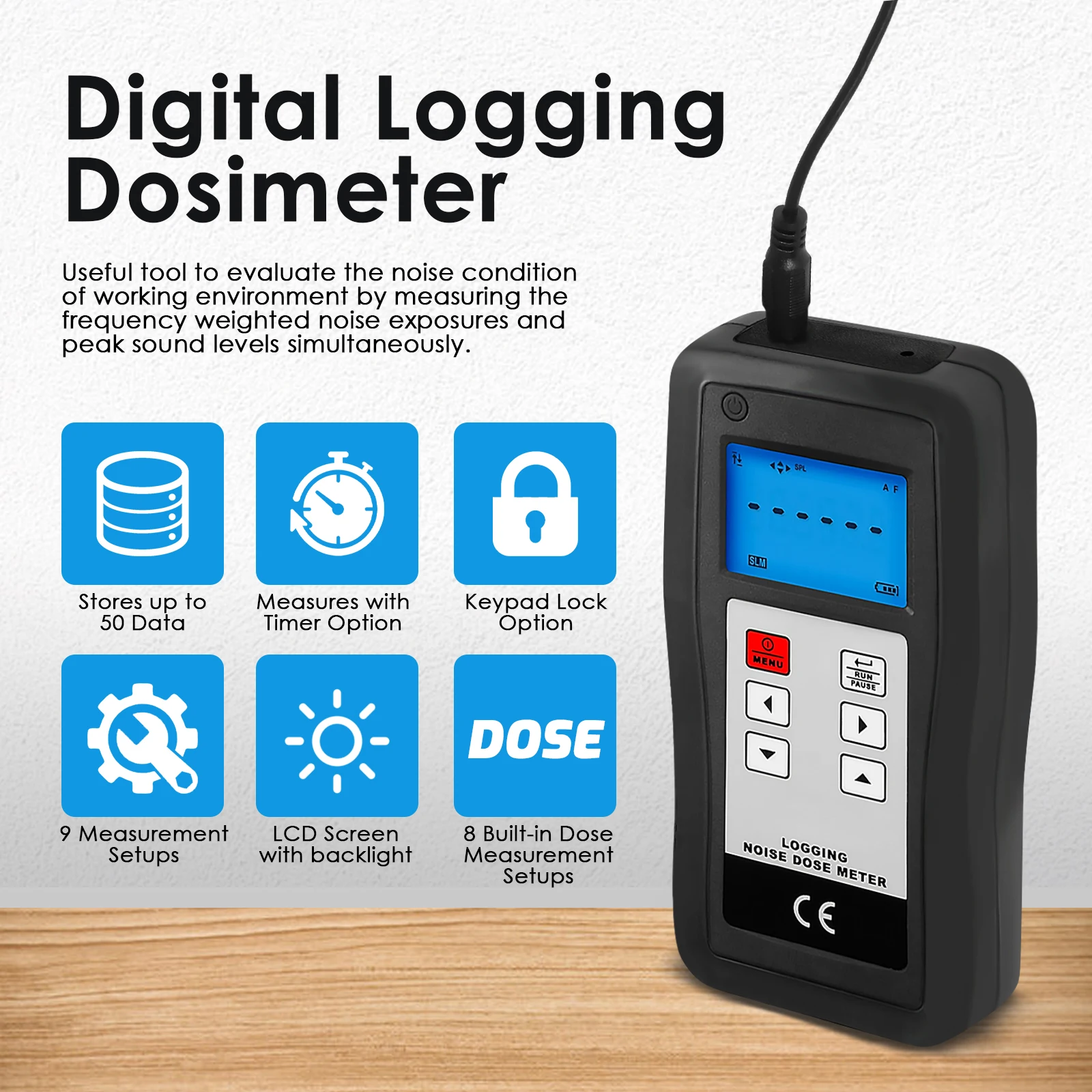

The personal noise dose meter is test equipment to evaluate the noise condition of working environment by measuring the accumulated noise exposure.

The Noise Dose Meter measure the frequency weighted noise exposures and peak sound levels simultaneously.

DOSE is a parameter used to quantify noise exposure measured in a period, during turns of % noise exposure relative to 90dBA for 8 hours.
i.e. 100% DOSE = 90dBA for 8 hours

图片关键词

Features

1. Complies with GB/T 15952 standard
2. Measures noise exposure & peak sound levels simultaneously
3. Easy operation with direct readout
4. 8 built-in standard measurement setups (OSHA80, OSHA90, MSHA-80, MSHA-90, DOD, ACGIH, ISO85, ISO90)
5. 9 user-defined measurement setups
6. Single Sound Level Meter (SLM) mode
7. Stores up to 50 dose measurement results
8. PC connectivity for data transfer & setup downloads (USB output)
9. Keypad lock prevents accidental operation
10. Timers for preset measurement time & duration
11. USB Data with Software ; blue tooth Data Adapter with Software (NOT INCLUDED IN THE SET)

Specification

Standard Applied
IEC61252, ANSI S1.25 – 1992 for dose meter and sound exposure meters. IEC 61672-1-2013 Class 2
Microphone
1/2-inch electret condenser microphone with 31-inch integral cable
Display
Liquid Crystal Display
Measurement Ranges (Linearity and Indicator ranges at 4KHz)
60 – 130 : 60 – 130dB (A and C)
70 – 140 : 70 – 140dB (A and C)
Peak Ranges (C–weighted or Linear Peak over the top 40dB of each measurement range)
60 – 130 : 93 – 133dB Peak
70 – 140 : 103 – 143dB Peak
Frequency Weightings
RMS Detector: A or C
Peak Detector: C or Z (Linear)
Time Weightings
Fast and Slow (RMS detector)
Exchange Rate
3, 4, 5 or 6dB
High Level Detector
115dB
Memory
50 measurements
Stabilization Time
10 seconds from power on
Logging Period (LP)
1s, 2s, 5s, 10s, 15s, 20s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min or 60min
Output
USB interface
Power Supply
4x1.5V AAA Size (UM-4)Battery
Operating Temperature & Humidity
0 – 50ºC (32 to 122ºF) ,10 – 90%RH
Storage Temperature & Humidity
-10 – 60ºC(14 to 140ºF) ,10 – 75%RH
