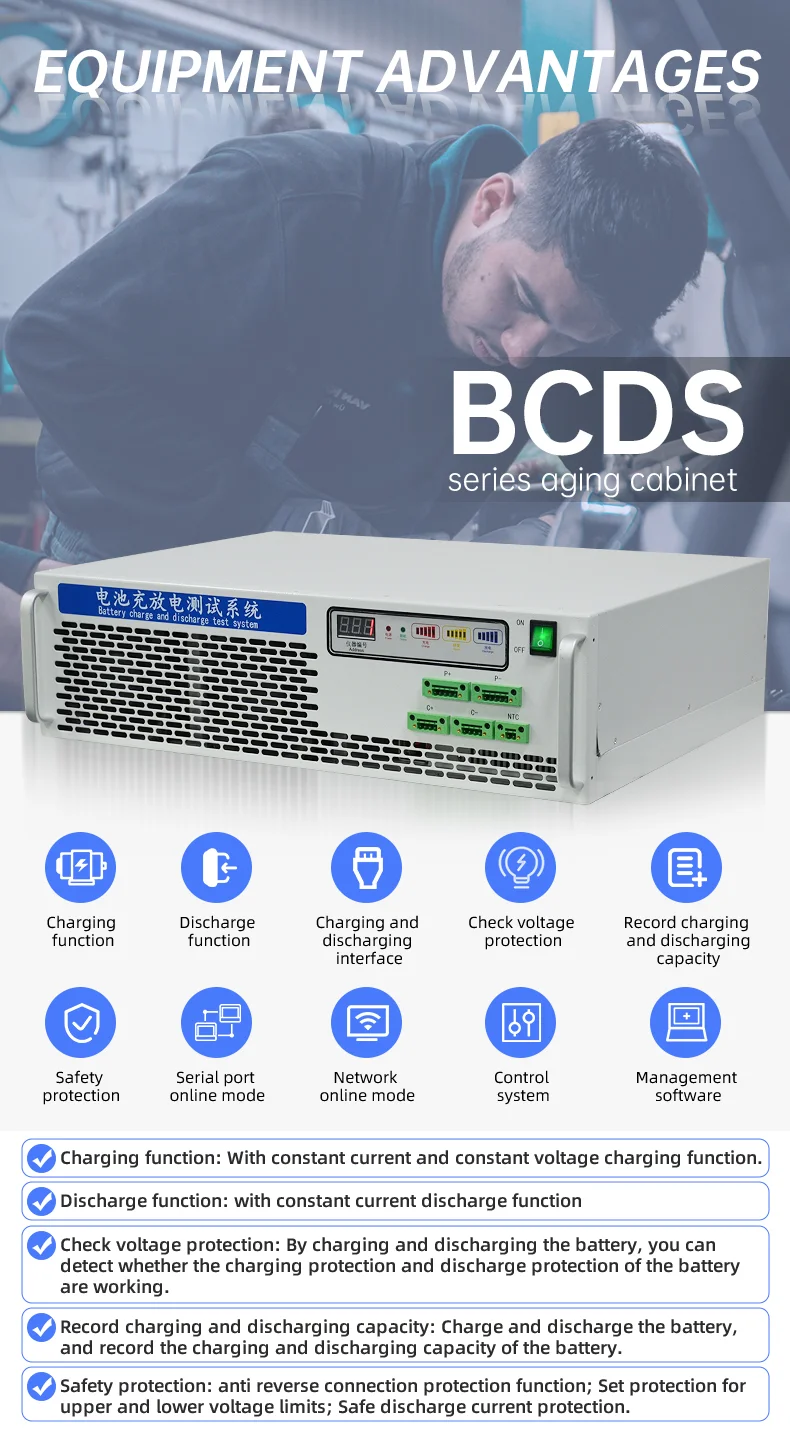

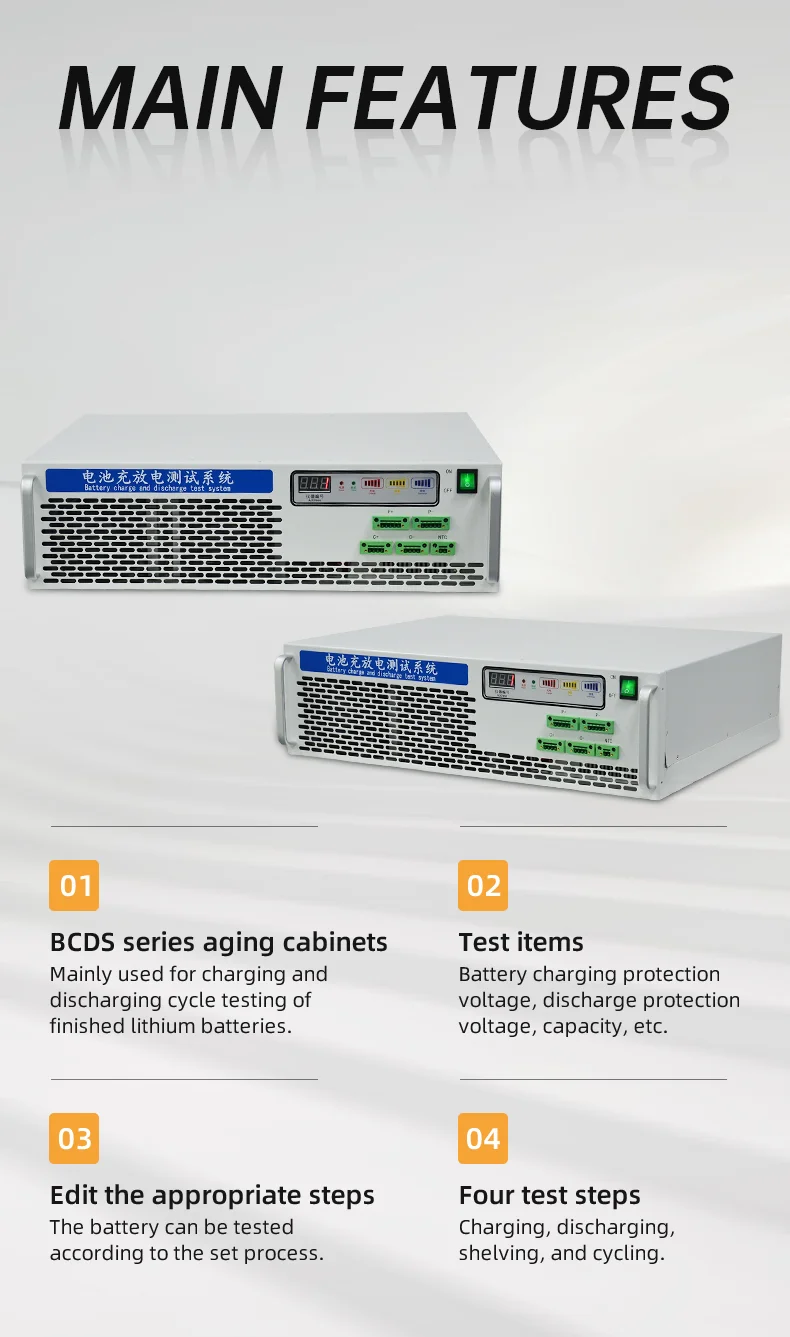

Xtester- BCDS100-10-20(2000W)Single 100V 10A Charge 20A Discharge Battery Pack Charge and Discharge Aging lithium battery tester
Product Parameter
Model | BCDS100-10-20 | |
Voltage | Test Range | 10~100V |
Resolution | ±(0.2% of reading + 0.2% of range) | |
Current | Charge Range | 50~10000mA |
Discharge Range | 50~20000mA | |
Resolution | ±(0.2% of reading + 0.2% of range) | |
Charge | Constant voltage cut-off current | Min. 50mA |
Capacity | Resolution | ±1‰ |
Power | Discharge Power | ≤2000W |
Time | Patrol inspection time | Receive real time<2S |
Timing range | 0~999 Hrs/Step | |
Data recording interval | ≥5S | |
Median machine version | 1.1Series | |
Charge | Charge Mode | Constant current and constant voltage charging |
Cut off condition | Voltage, current, relative time, overcharge protection | |
Discharge | Discharge Mode | Constant current discharg |
Cut off condition | Voltage, relative time and over discharge protection | |
Cycle | Cycle Test Range | 1~999 cycles |
Single cycle work steps | 100 | |
Voltage and current detection sampling | Four wire sampling | |
Database | Using SQL database to manage test data | |
Communication mode of upper computer | Network port and serial port based on TCP / IP protocol | |
Data output mode | Excel, TXT, Chart file | |
Single Channel | 600*450*170mm(W*D*H ) | |
Cabinet Dimension | / | |
Battery Placing Space | / | |
Weight | 24KG | |
Channel Qty | 1 Channels | |
Spare Parts | Computer, test pen line, user manual, software, etc | |
