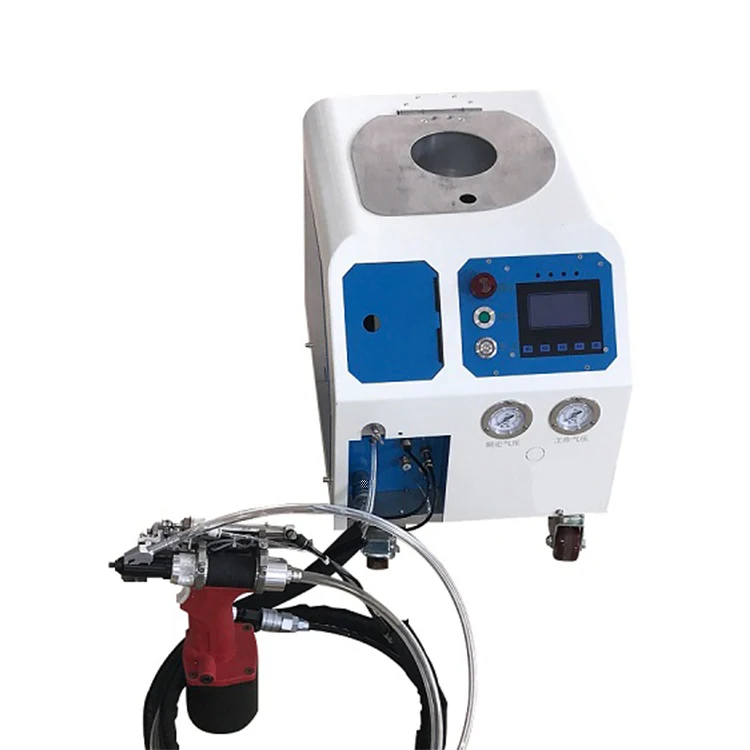

Xtester-Automatic Feeding Rivet Machine Pneumatic Auto Feed Rivet Gun Hand Riveting Tools Sensor
Products:
| temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc. |
Product Description
Product introduction
| Automatic riveter is composed of main machine (automatic arrangement feeding device) and rivet gun assembly. The working principle is that the rivets are automatically arranged and separated by the vibration device, and with compressed air as the power, the rivets are automatically conveyed to the rivet gun nozzle through the pipe. Fly Efficiency's automatic riveter can upgrade the traditional manual riveting operation to automatic operation, and the integrated robot arm can achieve unmanned operation and improve the work efficiency exponentially. |
| Dimensions | 440x350x420mm |
| Silo capacity | 3000~5000grain |
| Rated power | 350W |
| Equipment weight | 45KG |
| Riveting speed | 1.2~1.5 seconds / grain |
| Pull gun weight | 1.2kg |
| working pressure | 6KG |
| Rated air pressure | 8KG |
| Spike speed | 50~60grain/min |
| Applicable rivet specifications | 2.4/3.2/4.0/4.8mm |
