Xtester- 534D fluxgate meter 3-axis vector magnetometer system

Xtester- 534D fluxgate meter 3-axis vector magnetometer system

2024-08-27 14:43:25

534D fluxgate meter 3-axis vector magnetometer system

Main Features :
Serial No. : Zoe319

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester- 534D fluxgate meter 3-axis vector magnetometer system

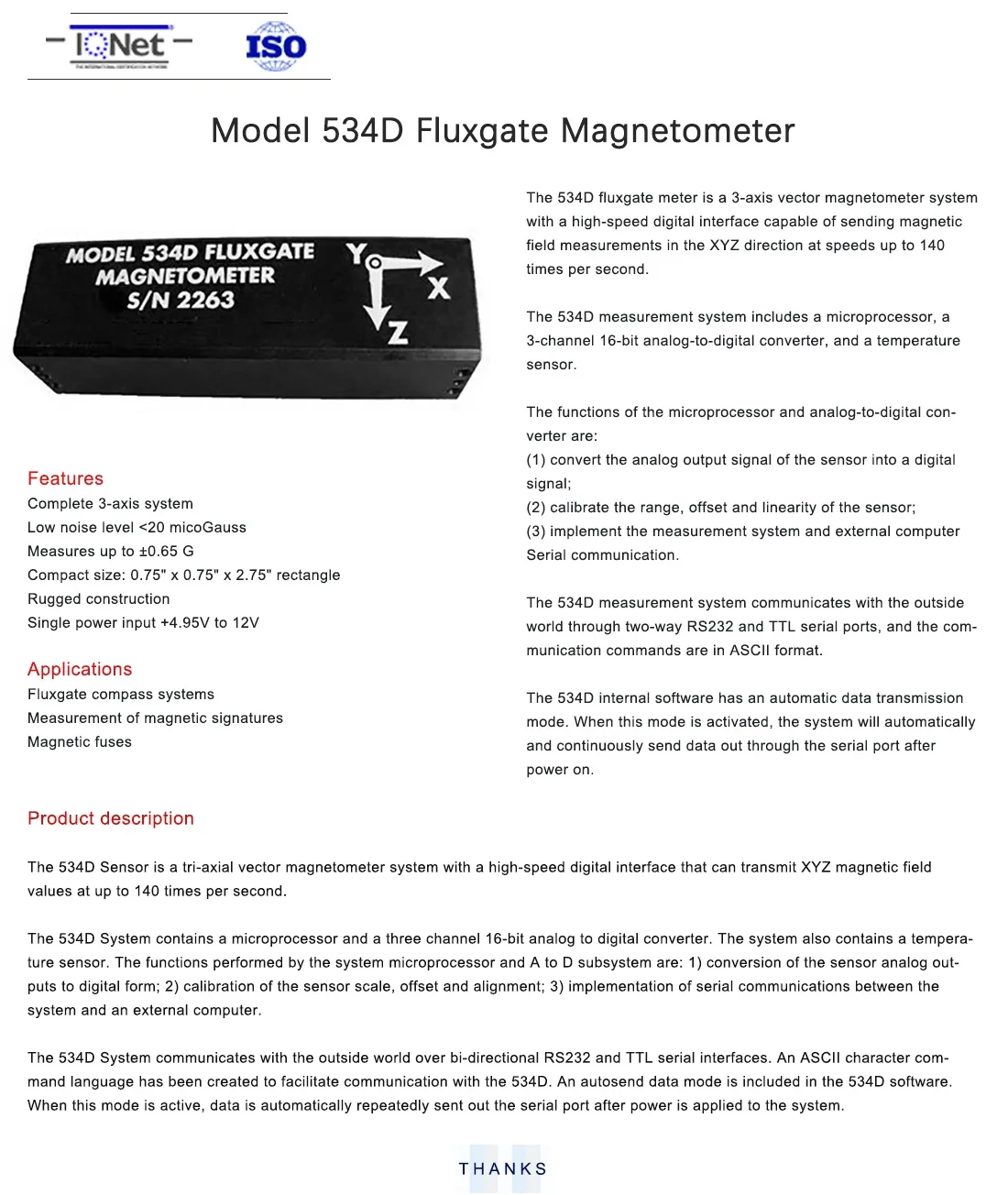

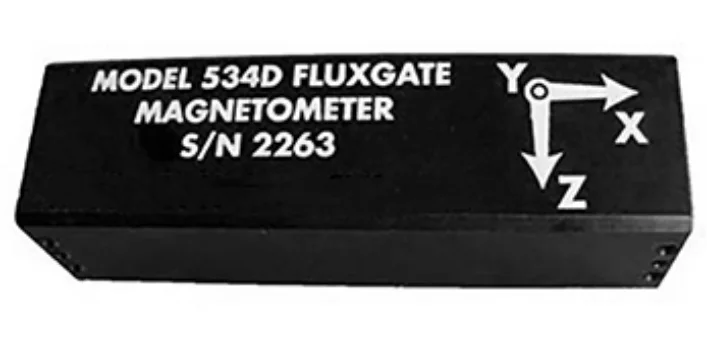

The 534D fluxgate meter is a 3-axis vector magnetometer system with a high-speed digital interface capable of sending magnetic field measurements in the XYZ direction at speeds up to 140 times per second. The 534D measurement system includes a microprocessor, a 3-channel 16-bit analog-to-digital converter, and a temperature sensor. The 534D measurement system communicates with the outside world through two-way RS232 and TTL serial ports, and the communication commands are in ASCII format. The 534D internal software has an automatic data transmission mode. When this mode is activated, the system will automatically and continuously send data out through the serial port after power on.
