Xtester- 50mm Pan Tilt AHD 60m-150m 360 degree Rotation Manual Focus Push Pipe Camera
The 50mm Pan Tilt AHD camera features a 360 degree rotation, manual focus, and the ability to push through pipes for inspection. With a range of 60m-150m, this camera is suitable for various industrial and maintenance applications. Power Supply: 8800mA Li-ion rechargeable battery Cable Reel: 60m-150m, diameter 9mm fiberglass cable Camera Size: Ø50mm x 145mm Screen Size: 13 inch HD IPS LCD Screen Model No.: V13-3250PTF Production Time: 5 days for sample. Less 10pcs, 7 days Applications: Sewer Pipe, Drain Pipe, Water Pipe, Underground pipe |
Product Detail
50mm Pan Tilt AHD 60m-150m 360 degree Rotation Manual Focus Push Pipe Camera is a high-quality camera designed for pipe inspection and maintenance. It features a 360-degree rotation, allowing users to easily capture images from all angles. With a manual focus and a long range of 60m-150m, this camera is ideal for professional inspections and surveillance. |
Selling points:
1. 360-degree rotation for comprehensive inspection coverage. 2. Long-range capabilities of 60m-150m for versatile use in various environments. 3. Manual focus for precise image capture. |
Overview of 50mm Pan Tilt Sewer Camera
360° rotation AHD Camera Head, Pan 360° Tilt 180° |
1/3 CMOS,2.0MP pilex FHD , waterproof IP68 |
Adjustable focus function |
13 inch IPS lcd screen |
DVR control box with audio ,video recording and photography function |
USB wireless keyboard to typewrite the words |
Built in 8800mA li-ion battery inside |
Digital meter counter function, error is less than 1% |

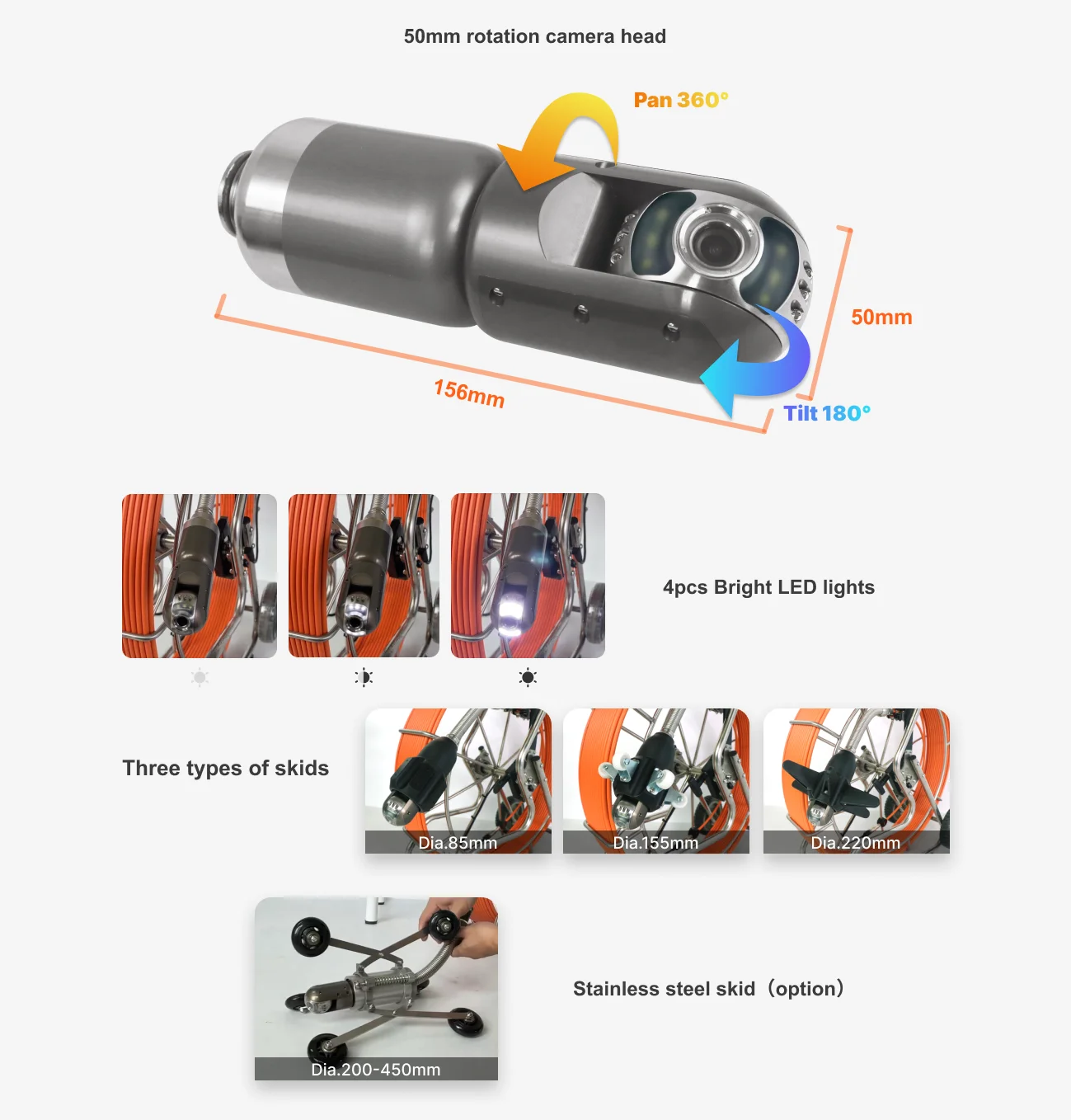

Main Part 1: 50mm Pan Tilt rotation camera head
Camera size | 50mm x 154mm |
Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
Waterproof level | Waterproof IP68 |
Camera range | View range 120° |
Focusing | Manual focus manually |
Rotation range | Rotation: Pan 360°, Tilt 180° |
Light | 6pcs high light LED lighting adjustable |
Connector | Detachable with pins type connection to Cable Reel |
Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
Screen Size | 13"HD IPS LCD Screen, 1280X720 resolution |
Waterproof level | Waterproof keys & waterproof panel |
Function | Video, auido and photography function DVR |
Keyboard | USB wireless Keyboard real time typewriting |
Meter counter | Digital meter counter function, display on the screen |
Battery | 8800mA rechargeable Li-ion Battery Pack |
Battery level indicator |
Main Part 3: Cable reel
Meter counter | Digital meter counter |
Material | Fiberglass push rod cable |
Cable diameter | 9mm or 11mm |
Cable length | 60m-150m |
Reel size | 70 x 28 x 84cm |
Applications
Detect and identify pipe damage: Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline. Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection: Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes. Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines |
